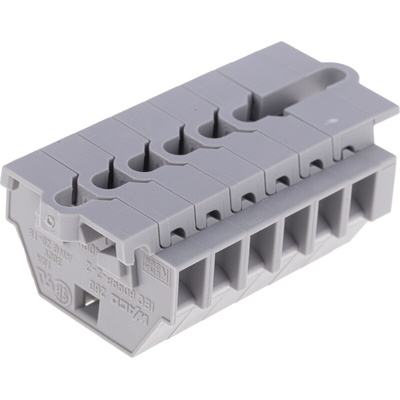

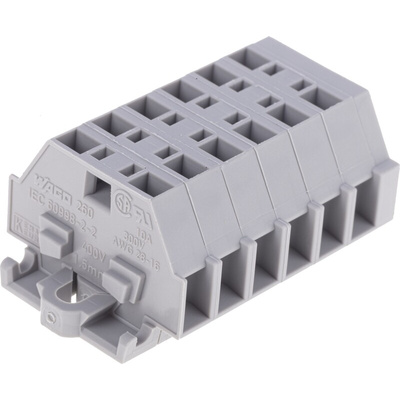

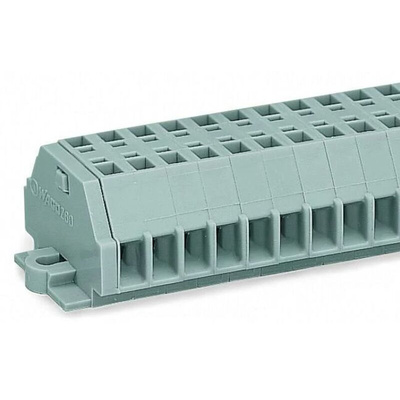

260-106, Wago 260 Series Grey Terminal Strip, 1.5mm², Single-Level, Cage Clamp Termination

Wago Modular Terminal Block, 18A Current Rating, 5mm Pitch - 260 Series - 260-106

Are you getting in a tangle when trying to terminate cables in tight spaces? This modular terminal block from Wago makes multiple wire connections a doddle. The strip gives you six poles you can use to join, isolate and feed wires through to different circuits. Thanks to its surge voltage rating of 6kV, you can count on this block to stand up to electrical hazards. For convenience, it comes with a flange for fixing it directly onto panels and plates.

Features & Benefits

• Suitable for use in extreme environments, thanks to its wide operating temperature range between -60°C and +105°C
• Cage clamp terminals for simple and secure wiring
• Flame-retardant housing for improved fire safety
• Accepts cable sizes between 28 and 16AWG for versatility

Applications

• Building installations
• Marine and offshore applications
• Electrical engineering
• Machine building

Can I mount this modular terminal block on a DIN rail?

Yes. Thanks to the modular design of this terminal block, you can adapt it with mounting feet (101-3877) to fit it onto a standard 35mm DIN rail.

260 Series

Series 260 Modular Terminal Blocks Data Sheet

CENELEC 96-00357

Datasheet
