6.522.012.300, Kübler CODIX 522 Counter, 6 Digit, 60kHz, 10 → 30 V dc, Счетчик

Kubler Counter

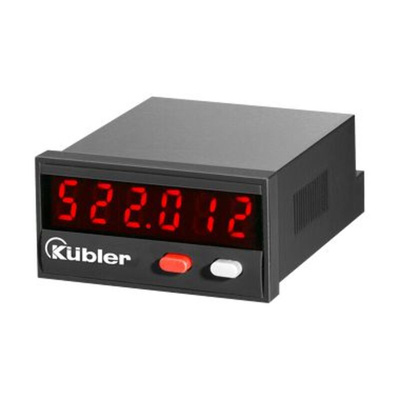

The Kubler CODIX 522 series digital counter is a simple voltage is a powered panel mount frequency display tachometer. This counter displays in 1/min or 1/sec, freely scalable, for fast and slow count pulses, with 6-digit LED display for NPN, PNP input signals, with a fast HRA measurement system (High Rate Accuracy). The voltage rating range between 10VDC and 30VDC. This counter has a maximum count frequency of 60KHz.

Features and Benefits

The large, ergonomic buttons allow easy operation
Decimal point selectable
All set-up parameters are programmable via two front keys
Operating temperature ranges between -20°C and 65°C

Applications

Rotary speed applications
OEM equipment for flow rate measuring \t
Speed applications on motors, turbines and machines
feed-rate measurement
Recording of production rates
Frequency measurement

Certifications

EN 55011 class B\t \t
EN 61000-6-2
IP65 rated

6.522.012.300 Datasheet

Operating Instructions
