NH130, Eclipse Neodymium Magnet 16kg, Length 20mm, Width 22.2mm

Eclipse Neodymium Deep Pot Bi-pole Magnet

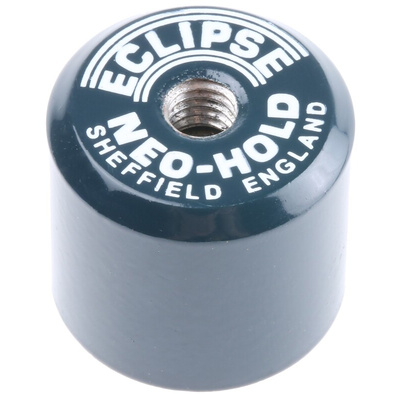

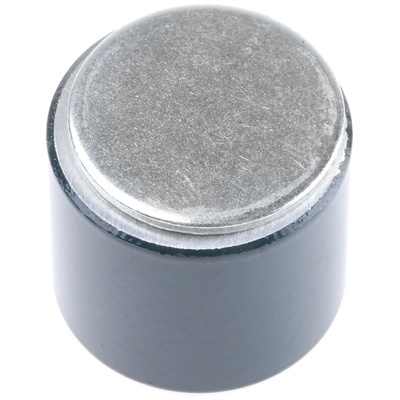

The Eclipse neodymium deep pot bi-pole magnet is made of ’rare earth’ iron boron material and has two poles close together to achieve very strong gripping forces of up to 16kg. There are two mild steel pole pieces (circular segment shaped) with a magnet between the mild steel poles. It has a threaded hole at the back for fixing. The magnet can be used at temperatures of up to 80°C.
Supplied with
Keepers.

Features and Benefits

Total height of 20mm and diameter of 22.2mm
Slot width of 5.5mm
Aluminium pot
Anisotropic
High resistance to de-magnetisation
M6 thread size
N35 grade material (Nickel plated)
Strongest magnetic performance
Weight is 0.04kg
