828, Eclipse 38.1mm Threaded Hole M4 Aluminium Alloy Pot Magnet, 13kg Pull, Магнит

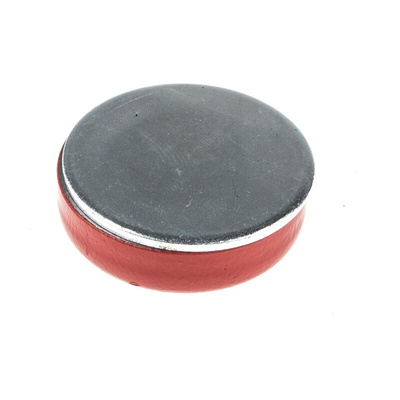

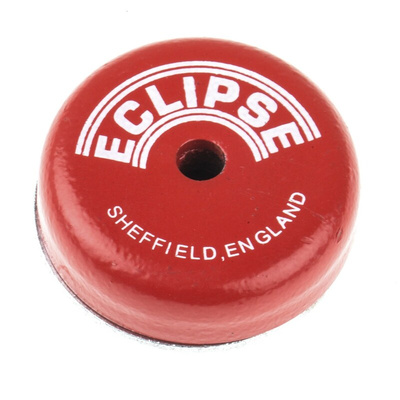

Eclipse Shallow Pot Magnet

The Eclipse red shallow pot magnet is made of aluminium nickel-cobalt alloy and has pull force up to 13kg. It can be used at temperatures up to 450°C. There is a hole through the countersunk mounting pot magnet. This allows the M4 screw head to be inserted into the magnet to screw the countersunk mounting pot magnet to any material of your choice to give a good mechanical hold. It is a very popular pot magnet, ideal for clamping and holding applications. It is supplied with keepers.

Features and Benefits

Diameter of 38.1mm and height of 10.35mm
Hole size is 5.2csk
Alnico 5 magnet material
North polarity in centre
Magnetically stable at high temperatures
Good corrosion resistance
Diameter ground to H6 tolerance
Mild steel pot
Brass spacer
0.01kg weight
