12954600+70135400, Epic Contact H-BE Heavy Duty Power Connector Housing, 24 Contacts, PG29 Thread

High Construction Housing

From Contact Connectors, this high construction housing is for use with Contact Epic H-BE and H-DD connector inserts. The housings have integrated levers to connect securely to corresponding connector hood pips.

Approvals

VDE; CSA; UL; SEV

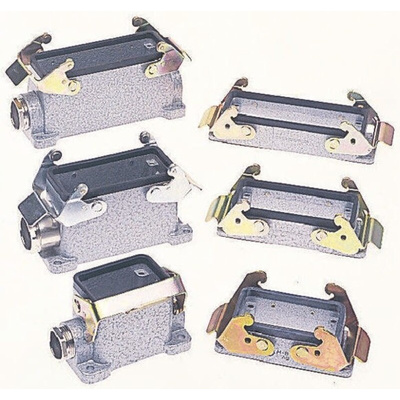

H-BE / H-DD Hoods & Housings

HBE connectors are type tested to 16A, 440Vac, and are available complete in kit form and as individual parts.

Aluminium alloy construction
Metric versions also available
High construction versions allow the use of bulky multicore cable and are ideally suited for use with the high density H-DD inserts

These hoods and housings will accept either plug or socket inserts from the H-BE 440Vac 16A screw termination inserts, or the H-DD 250Vac 10A high density crimp termination inserts.
The cable glands seal to IP65. Panel mount bases include a rubber gasket for sealing.
All this allows for a wide variety of commercial and industrial applications.

UL E75770

CSA 53004

EPIC Connector Accessories
