RM6-N2, Cropico Resistance Decade Box, Resistance Resolution 1Ω, Absolute Maximum Resistance Measurement 100kΩ, Декадный магазин

Calibration/Substitution, Compact 6 Decade Resistance Box

Compact, durable case manufactured from high impact polystyrene
Metal film resistors and silver plated brass contact switches
Particularly suitable for use in electrical and electronic industrial laboratories
Required resistance selected by the 6 rotary switches
An additional 1KΩ resistor is available at the terminals, enabling the user to make a simple divider

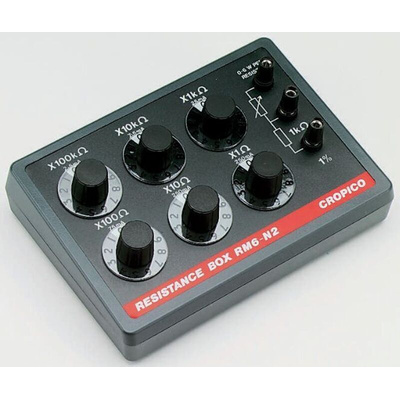

Cropico Decade Resistance Box

The Cropico compact decade resistance box is manufactured from high impact polystyrene with metal film resistors and silver-plated brass contact switches. Its required resistance is selected by the rotary switches. This model has a total resistance of 111.1111Mohm with a resolution of 10ohms. Its accuracy of ±1% is achieved by using metal film resistors that have a power rating of 0.6W.

Features and Benefits

Six decades are 10 x 1ohm, 10 x 10ohm, 10 x 100ohm, 10 x 1kohm, 10 x 10kohm and 10 x 100kohm
Residual resistance is <0.1ohm
Temperature coefficient is ±100ppm/°C
4mm banana plugs and spade tags
Polished hardwood with aluminium top panel
Length of 70mm, width of 190mm and height of 140mm
High durability and ease of maintenance

Applications

Electrical industrial laboratories
Electronic industrial laboratories

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Datasheet
