RS PRO Straight Threaded Adaptor, R 1/8 Male to Push In 6 mm, Threaded-to-Tube Connection Style, Переходник

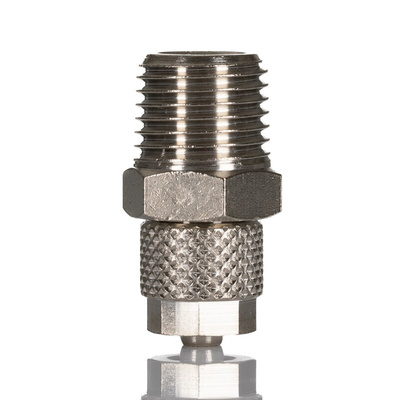

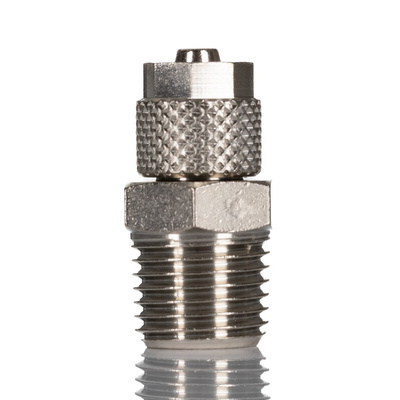

RS PRO Threaded-to-Tube Pneumatic Fitting R 1/8 in to Push In 6 mm, 15 bar

If you need to connect nylon or polyurethane tube to a threaded connection as part of a pneumatic system, this fitting from RS PRO ensures a secure connection. The tube can be pushed into a 6-millimetre inlet, with the other end finished with a standard male R 1/8 in thread.

The pneumatic fitting can be used safely within a temperature range of -18°C to +70°C and up to a maximum pressure of 15 bar.

This product is part of the stringently tested RS PRO range. It's RoHS-certified as containing only minimal levels of hazardous substances. This type of pneumatic fitting is commonly used to connect tubes in pneumatic systems, which are found in a range of industrial applications, including air brakes, pneumatic tools and HVAC (heating, ventilation and air conditioning) units.

Features and Benefits

• Pneumatic fitting
• Threaded-to-tube connection style
• Inline mounting
• Standard R 1/8 in male thread
• 6 mm push-in connection
• Maximum operating pressure of 15 bar
• Maximum operating temperature of +70°C
• Minimum operating temperature of -18°C
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Datasheet

RS Pro Datasheet
