RS PRO Straight Threaded Adaptor, G 1/4 Male to Push In 6 mm, Threaded-to-Tube Connection Style, Переходник

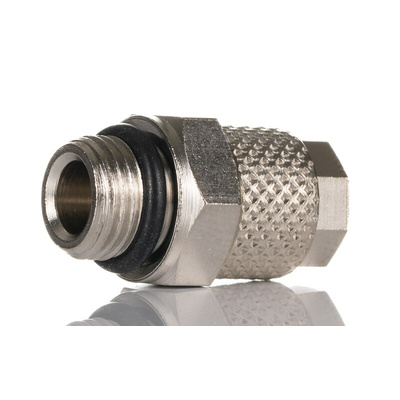

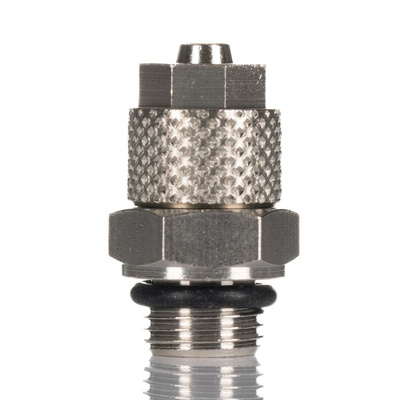

RS PRO Threaded-to-Tube Pneumatic Fitting G 1/4 in to Push In 6 mm, 15 bar

Use this pneumatic fitting from the reliable RS PRO range to connect polyurethane or nylon tubing to a threaded connection in pneumatic systems. The fitting has a simple 'push-on and screw' collar design that's quick and easy to install while also offering a very secure connection.

The pneumatic fitting can be used at operating pressure levels up to 15 bar. It can be pushed into a 6 mm inlet and finished at the other end with a male G 1/4 inch thread.

This product has received the RS PRO seal of approval, meaning it has been exhaustively tested by engineers for safety and consistency. It also complies with the RoHS Directive on minimal levels of hazardous substances.

Pneumatic fittings such as this one are typically used in a wide range of industrial settings where tubes need connecting in pneumatic systems, for example, air brakes and ventilation units.

Features and Benefits

• Pneumatic fitting
• Threaded-to-tube connection style
• Inline mounting
• Standard G 1/4 in male thread
• 6 mm push-in connection
• Maximum operating pressure of 15 bar
• Maximum operating temperature of +70°C
• Minimum operating temperature of -18°C
• RoHS (Restriction of Hazardous Substances) compliant
• Meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
