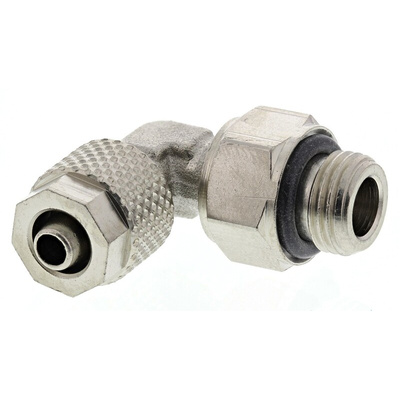

RS PRO Elbow Threaded Adaptor, G 1/8 Male to Push In 6 mm, Threaded-to-Tube Connection Style, Переходник

RS PRO Elbow Threaded Adaptor to G 1/8 Male to Push In 6 mm 15 bar

Create a secure 90º angle join on your nylon or polyurethane (PU) tubing with one of these elbow adaptors from RS PRO. Elbow adaptors are a safe and simple way of changing the direction in a pneumatic system or tool without twisting or bending your tubing.
These adaptors each have one male, tapered, G-thread screw connector to create a tight seal and one push-in connection that fits a 6 mm-sized tube for a solid, swivel-free join. Push-on connectors make it quick and simple to connect and disconnect tubes in just one click.
These general-purpose fittings have a wide operating temperature range of -18ºC to +70°C, making them suitable for many applications. You'll see them used in connection with instrumentation equipment, vacuum pumps and suction tools.

Features and Benefits

• Angle of 90º
• Threaded-to-tube connection style
• Connector A is a male G 1/8 threaded connector
• Connector B is a push-in 6 mm tube connection
• Swivel-free connection
• Maximum operating pressure of 15 bar
• Operating temperature range of -18°C to +70°C
• Elbow threaded adaptor pneumatic fitting type

Datasheet
