843.100.55, Werma 843 Series Red Steady Effect Beacon Unit, 24 V dc, LED Bulb, AC, DC, IP54

Stacking Signal Tower - KombiSIGN 70, 70mm, IP54

The WERMA KombiSIGN 70 modular stacking signal tower is an ideal solution to the increasing requirement for safety, machine productivity and reduced downtime. The modular design of these stacking towers enables quick and easy installation. Each KombiSIGN module is equipped with a bayonet fixing with integral contact system. Simply align the corresponding white marks and gently twist to lock them in place.

Features and Benefits

• Suitable for machine and manual Andon indication
• Modular system allows a completely free combination of optical and audible signal elements
• Mechanical and electrical connection of the elements in the space of seconds using a bayonet connection system
• Completely safe element changes (contact-voltage proof) without the need for tools
• Protection rating IP54 for use in normal conditions
• Up to 5 elements can be mounted on a terminal base
• Flexible combination of optical and audible elements
• Optical isolation due to O-ring seal stopping illumination of adjacent element
• Operating voltage for the continuous incandescent element is dependant on bulb fitted
• LED EVS elements have an extremely bright, random sequence of light to immediately grab attention
• Ultra-bright elements are up to 20 times brighter than conventional LED beacons. Intelligent electronics ensure operation at maximum brightness
• Vocal element plays customer specific audio files in mp3 format (sounds, alarms, music or spoken word)
• Operating temperature range is -20 to +50 °C
• Polyamide body with polycarbonate lenses, 70 mm diameter

Permanent Multi-colour LED Light Element

• Seven colours in one beacon
• Different colours can be triggered via the pins in the terminal element
• Positive and negative control logic
• The three basic colours (red/yellow/green) can be triggered using only two PLC outputs
• High light intensity

Note

Lamps are not supplied and must be purchased separately. Not compatible with KombiSIGN 71.

Approvals

UL listed, CSA, VDE

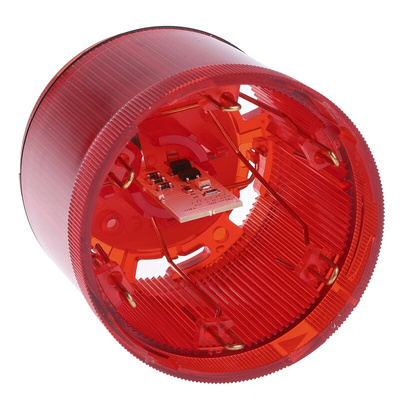

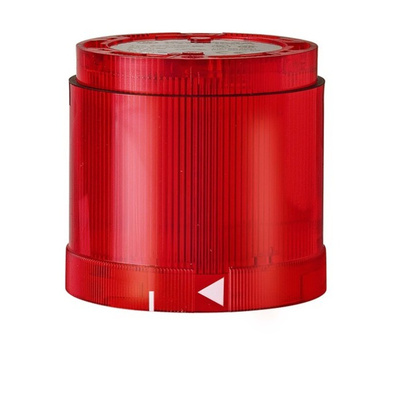

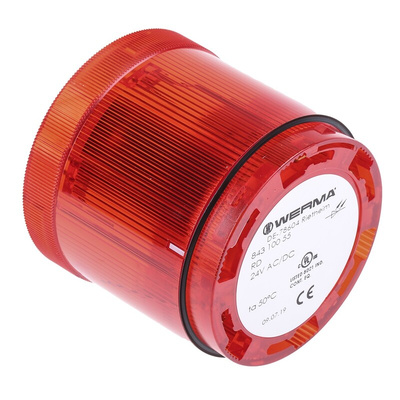

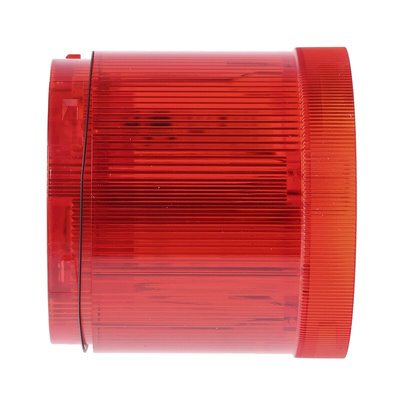

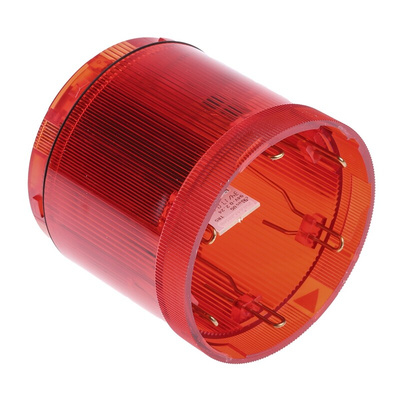

WERMA Beacon Unit, Steady Light Effect, 24V DC - KombiSIGN 70 Series - 843.100.55

Choose this beacon unit from WERMA as part of your signal tower to warn operators of safety hazards. Its red lens colour, bright LED (light-emitting diode) and steady effect are easily seen, making it ideal for providing an early visual warning signal. The unit is highly efficient thanks to its low power consumption and extended working life. It's quick and easy to assemble without the need for special tools, saving you time during installation. The robust polyamide body is corrosion-resistant and hard-wearing, which makes this beacon a smart choice for harsh conditions or environments where moisture may be present.

Features and Benefits

• Small, space-saving design with a base diameter of only 70mm
• IP54 (ingress protection) rating for protection from dust and sprays of water
• Strong and durable polycarbonate lens that won't easily break
• Wide operating temperature range of -20°C to +50°C for use in a variety of conditions

Application Information

• Industrial automation
• Machine shops
• Wind and power generation

Can you stack this beacon with other lights?

This versatile WERMA beacon has a modular design, which means you can easily use it with other beacons from the KombiSIGN 70 range. Simply twist and click each beacon into place to form a stack.

UL E164155

CSA LR108291-1
