843.300.55, Werma 843 Series Amber Steady Effect Beacon Unit, 24 V dc, LED Bulb, AC, DC, IP54

Stacking Signal Tower - KombiSIGN 70, 70mm, IP54

The WERMA KombiSIGN 70 modular stacking signal tower is an ideal solution to the increasing requirement for safety, machine productivity and reduced downtime. The modular design of these stacking towers enables quick and easy installation. Each KombiSIGN module is equipped with a bayonet fixing with integral contact system. Simply align the corresponding white marks and gently twist to lock them in place.

Features and Benefits

• Suitable for machine and manual Andon indication
• Modular system allows a completely free combination of optical and audible signal elements
• Mechanical and electrical connection of the elements in the space of seconds using a bayonet connection system
• Completely safe element changes (contact-voltage proof) without the need for tools
• Protection rating IP54 for use in normal conditions
• Up to 5 elements can be mounted on a terminal base
• Flexible combination of optical and audible elements
• Optical isolation due to O-ring seal stopping illumination of adjacent element
• Operating voltage for the continuous incandescent element is dependant on bulb fitted
• LED EVS elements have an extremely bright, random sequence of light to immediately grab attention
• Ultra-bright elements are up to 20 times brighter than conventional LED beacons. Intelligent electronics ensure operation at maximum brightness
• Vocal element plays customer specific audio files in mp3 format (sounds, alarms, music or spoken word)
• Operating temperature range is -20 to +50 °C
• Polyamide body with polycarbonate lenses, 70 mm diameter

Permanent Multi-colour LED Light Element

• Seven colours in one beacon
• Different colours can be triggered via the pins in the terminal element
• Positive and negative control logic
• The three basic colours (red/yellow/green) can be triggered using only two PLC outputs
• High light intensity

Note

Lamps are not supplied and must be purchased separately. Not compatible with KombiSIGN 71.

Approvals

UL listed, CSA, VDE

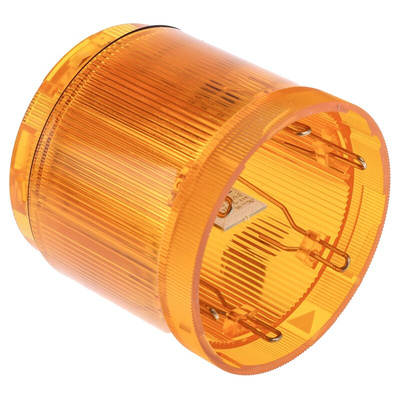

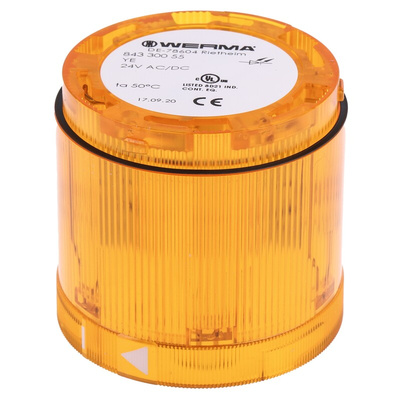

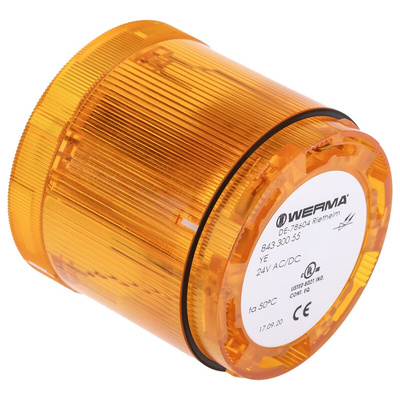

WERMA Beacon Unit, Steady Light Effect, 24V DC - KombiSIGN 70 Series - 843.300.55

Looking for a reliable safety beacon? This steady warning light from WERMA is quick and simple to install as part of a signal tower on a control panel or machine. Its amber colour is ideal for visually indicating that a piece of equipment needs to be checked, allowing you to resolve problems before a breakdown occurs. The beacon's body is made from a robust polyamide material, which is extremely durable and resistant to high temperatures. It also prevents moisture from entering the light and affecting its performance.

Features and Benefits

• IP54 (ingress protection) rating for protection from dust particles and splashes of water
• Ultra-bright light that's highly visible in any working conditions
• Straightforward and time-saving installation without the need for any special tools
• Wide operating temperature range of -20°C to +50°C for use in demanding environments

Application Information

• Mining and quarrying industries
• Machine shops
• Food and beverage industry
• Material handling

What type of bulb does this beacon use?

This beacon uses an LED (light-emitting diode) bulb, which is highly energy-efficient as it needs very little heat to operate. This type of bulb also has a long working life, so you won't need to replace it frequently.

UL E164155

CSA LR108291-1
