843.210.55, Werma 843 Series Green Blinking Effect Beacon Unit, 24 V dc, LED Bulb, AC, DC, IP54

Stacking Signal Tower - KombiSIGN 70, 70mm, IP54

The WERMA KombiSIGN 70 modular stacking signal tower is an ideal solution to the increasing requirement for safety, machine productivity and reduced downtime. The modular design of these stacking towers enables quick and easy installation. Each KombiSIGN module is equipped with a bayonet fixing with integral contact system. Simply align the corresponding white marks and gently twist to lock them in place.

Features and Benefits

• Suitable for machine and manual Andon indication
• Modular system allows a completely free combination of optical and audible signal elements
• Mechanical and electrical connection of the elements in the space of seconds using a bayonet connection system
• Completely safe element changes (contact-voltage proof) without the need for tools
• Protection rating IP54 for use in normal conditions
• Up to 5 elements can be mounted on a terminal base
• Flexible combination of optical and audible elements
• Optical isolation due to O-ring seal stopping illumination of adjacent element
• Operating voltage for the continuous incandescent element is dependant on bulb fitted
• LED EVS elements have an extremely bright, random sequence of light to immediately grab attention
• Ultra-bright elements are up to 20 times brighter than conventional LED beacons. Intelligent electronics ensure operation at maximum brightness
• Vocal element plays customer specific audio files in mp3 format (sounds, alarms, music or spoken word)
• Operating temperature range is -20 to +50 °C
• Polyamide body with polycarbonate lenses, 70 mm diameter

Permanent Multi-colour LED Light Element

• Seven colours in one beacon
• Different colours can be triggered via the pins in the terminal element
• Positive and negative control logic
• The three basic colours (red/yellow/green) can be triggered using only two PLC outputs
• High light intensity

Note

Lamps are not supplied and must be purchased separately. Not compatible with KombiSIGN 71.

Approvals

UL listed, CSA, VDE

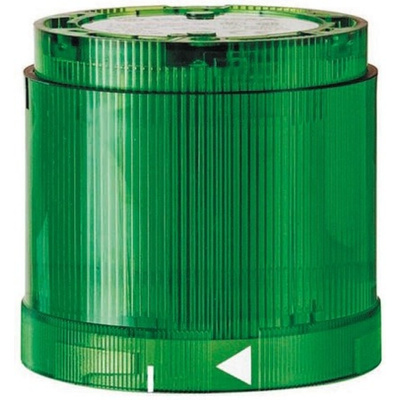

WERMA Beacon Unit, Green Lens Colour, Blinking Light Effect - KombiSIGN 70 Series - 843.210.55

Indicate normal operating conditions with this green beacon unit from WERMA. Its integrated LED bulb provides a bright light with an output of 360°, giving you a high degree of visibility. Thanks to its low operating current of just 25mA, it's an energy-efficient option for your signalling system. A long service life of up to 100,000 hours means it won't need frequent replacement.

Features & Benefits

• Blinking light effect to quickly attract attention
• Wide operating temperature range between -20°C and +50°C for use in harsh environments
• IP54 rating indicates protection against limited amounts of dust and water splashes
• Light weight of 69g to place minimal strain on your equipment

Applications

• Cleanrooms
• Forklift trucks
• Automated assembly lines
• Rail industry

How quickly does this beacon unit blink?

This beacon unit blinks at a rate of 1Hz to produce an urgent signal.

CSA LR108291-1
