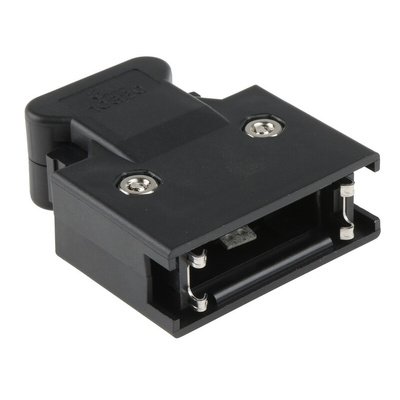

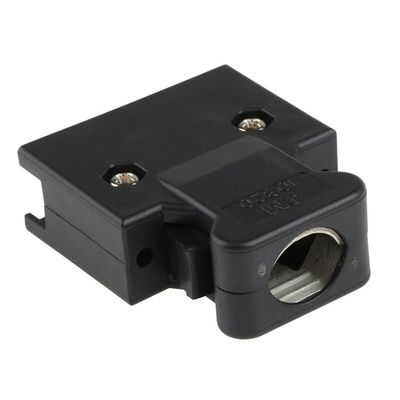

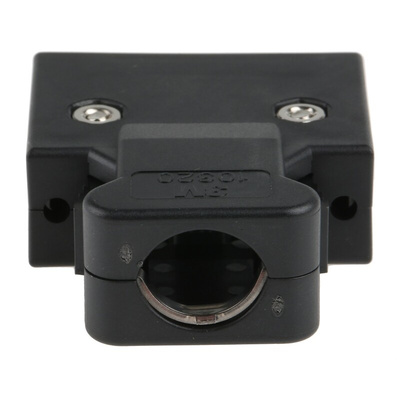

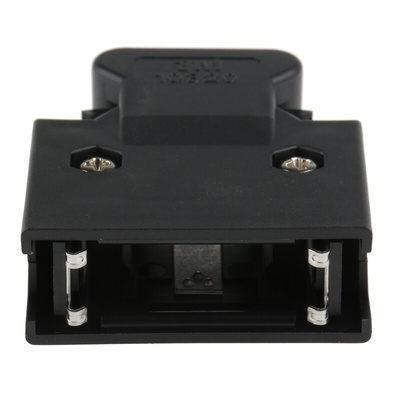

10320-52F0-008, 3M 103 Series PBT D Sub Backshell, 20 Way, Strain Relief

3M Plastic Backshells

From 3M, this range of the 103 Series .050" Mini Delta Ribbon (MDR) Connectors Plastic Solder Plug Junction Shell - Non Shielded Backshells are available with Screw or Quick Release Latching Mechanism. The design of the 103 Series MDR Junction Shell features a two-piece glass reinforced Backshell with Ground Strap and a metal Strain Relief Clamp

Features and Benefits

• Straight exit for round cables
• Compatible with 101XX-3000PE Plug
• Metal strain relief clamp provides grounding for cable shield

Options

• 103xx-52F0-xxx = Quick Release Latching Mechanism
• 103xx-52A0-xxx = Jack Screw

Applications

This D-Sub connector is designed to be used with round ribbon cables and can be easily terminated to the cable. As part of a complete cable system, they are often used in internal and external wiring in electronic devices, particularly in computing and robotics.

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

3M D-Sub Backshell, Straight Body, 20 Way - 103 Series - 10320-52F0-008

Need a workable solution to establish connections in your electronic applications? This D-sub backshell from 3M provides a protective casing for your round-ribbon D-sub connectors. It shields internal and external components against both electromagnetic and radio-frequency interference that can cause damage and interrupt the function of systems. The backshell is on hand to safeguard your connectors while ensuring secure and reliable connections for the optimal performance of your equipment.

• Polybutylene terephthalate (PBT) housing material provides effective insulation and is electrically resistant to prevent direct touch and electrical shocks• Ground strap and metal strain relief clamp provide grounding to prevent power surges from damaging connectors• RoHS (Restriction of Hazardous Substances) certification means only minimal amounts of any harmful substances are present

Applications

• Music recording studios• Automotive interior fittings for digital devices• Office networking

How do I know if I need a plastic or metal connector shell?

Your choice of connector shell depends on the environment you need it to work in. As they won't rust, plastic connector shells are suitable for settings where moisture might be present. You can use metal connector shells in humidity-controlled places like server rooms.

Mini Delta Ribbon (MDR)

Cable mount plugs and PCB mount receptacles with pre-loaded ribbon contacts for long life
Finger releasable latching backshells for cable mounting applications

A Mini Delta Ribbon (MDR) system designed for high density I/O applications on a 1.27mm pitch.
