10326-52F0-008, 3M 103 Series PBT D Sub Backshell, 26 Way, Strain Relief

3M Plastic Backshells

From 3M, this range of the 103 Series .050" Mini Delta Ribbon (MDR) Connectors Plastic Solder Plug Junction Shell - Non Shielded Backshells are available with Screw or Quick Release Latching Mechanism. The design of the 103 Series MDR Junction Shell features a two-piece glass reinforced Backshell with Ground Strap and a metal Strain Relief Clamp

Features and Benefits

• Straight exit for round cables
• Compatible with 101XX-3000PE Plug
• Metal strain relief clamp provides grounding for cable shield

Options

• 103xx-52F0-xxx = Quick Release Latching Mechanism
• 103xx-52A0-xxx = Jack Screw

Applications

This D-Sub connector is designed to be used with round ribbon cables and can be easily terminated to the cable. As part of a complete cable system, they are often used in internal and external wiring in electronic devices, particularly in computing and robotics.

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

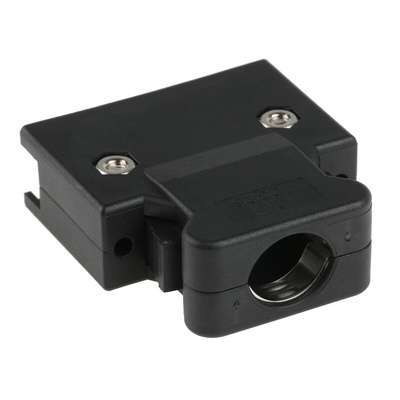

3M D-Sub Backshell, Straight Body, 26 Way - 103 Series - 10326-52F0-008

This D-sub backshell from 3M is a plastic 26-way casing that offers a practical solution for terminating and housing round-ribbon cables. You can confidently use it to establish internal and external system connections in all your electronic devices and applications. The connector shell lets you shield electromagnetic and radio frequency interference (EMI/RFI) that can damage the components and disrupt the function of your equipment. It also makes your connections secure and reliable, ensuring your system performs reliably.

• Glass-filled PBT (polybutylene terephthalate) housing for durability• Suitable for use in applications exposed to high static loads and temperatures of up to +85°C• Reliable metal clamp provides grounding for cable shield to prevent damage from power surges

Applications

• Medical imaging devices• Aerospace applications • Computerised industrial equipment

Does this 3M D-sub backshell provide cable strain relief and why is it important?

This 3M D-sub backshell provides strain relief, which is important because it protects your wires and cables from damage-causing forces like excessive pulling or stretching. It also stabilises your connection to ensure uninterrupted signal and power transfers.

Mini Delta Ribbon (MDR)

Cable mount plugs and PCB mount receptacles with pre-loaded ribbon contacts for long life
Finger releasable latching backshells for cable mounting applications

A Mini Delta Ribbon (MDR) system designed for high density I/O applications on a 1.27mm pitch.
