10350-52F0-008, 3M 103 Series PBT D Sub Backshell, 50 Way, Strain Relief

3M Plastic Backshells

From 3M, this range of the 103 Series .050" Mini Delta Ribbon (MDR) Connectors Plastic Solder Plug Junction Shell - Non Shielded Backshells are available with Screw or Quick Release Latching Mechanism. The design of the 103 Series MDR Junction Shell features a two-piece glass reinforced Backshell with Ground Strap and a metal Strain Relief Clamp

Features and Benefits

• Straight exit for round cables
• Compatible with 101XX-3000PE Plug
• Metal strain relief clamp provides grounding for cable shield

Options

• 103xx-52F0-xxx = Quick Release Latching Mechanism
• 103xx-52A0-xxx = Jack Screw

Applications

This D-Sub connector is designed to be used with round ribbon cables and can be easily terminated to the cable. As part of a complete cable system, they are often used in internal and external wiring in electronic devices, particularly in computing and robotics.

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

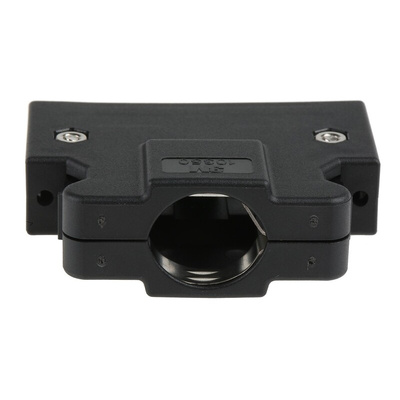

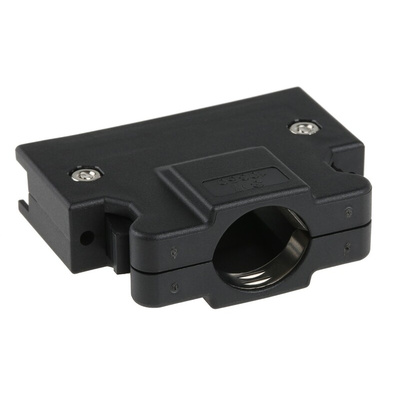

3M D-Sub Backshell, Straight Body, 50 Way - 103 Series - 10350-52F0-008

Looking for a way to securely install your connectors in electronic applications? This D-sub backshell from 3M is a robust connector casing that protects your components from physical stress like strains, jolts and vibrations. It shields connections from electromagnetic and radio frequency interference that can damage systems and stop them from working properly. You can depend on this connector shell to stabilise your connections and allow for uninterrupted signal and power relays. Use this item to establish reliable and safe connections in both internal and external wiring.

• UL 94V-0 (Underwriters Laboratories standard) indicates the connector shell will stop burning within 30 seconds in case of a fire • Glass-filled PBT (polybutylene terephthalate) material for durability• Wide operating temperature range of -20°C to +85°C

Applications

• Audio and visual systems• Medical monitoring equipment• Television connections

Is this 3M D-sub backshell grounded?

This 3M D-sub backshell comes with a ground strap and strain relief clamp. These provide reliable grounding for the cable shield to ensure that short circuits don't damage the connections or the rest of the components in the system.

Mini Delta Ribbon (MDR)

Cable mount plugs and PCB mount receptacles with pre-loaded ribbon contacts for long life
Finger releasable latching backshells for cable mounting applications

A Mini Delta Ribbon (MDR) system designed for high density I/O applications on a 1.27mm pitch.
