1-1103402-1, TE Connectivity Heavy Duty Power Connector Insert, 10A, Male, HA Series

HA Inserts

Male and female inserts will fit either cable hoods or base housings.

Each insert has a separate earth contact
To make up a 32 way male connector the 1-16 pole (16 way) and 17-32 pole inserts should be purchased together. These inserts will fit alongside each other in 32 way housings
To make up a 32 way female connector two 1-16 pole (16 way) pole inserts should be purchased together. These inserts will fit alongside each other in big 32 way housings
Sequential numbering for high density applications
Twist locked
Screw and spring clamp contacts already included
For crimp contacts the pins should be ordered separately see stock no. 416-171, for a suitable crimping tool see stock no. 416-199

Approvals

UL Listed, CSA Certified, SEV

TE Connectivity Connector Insert

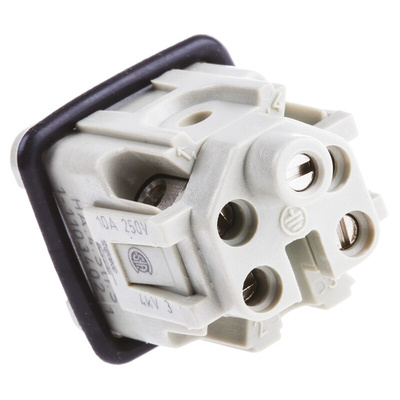

The TE connectivity HA series insert is beige coloured male insert having polycarbonate as a dielectric material. The current and voltage rating is 10A and 250V respectively. This insert has a silver finish contact and the contact material is brass.

Features and Benefits

• Operating temperature ranges between -40°C and 125°C

Certifications

• CSA certified
• SEV certified
• UL94 V-0

Inserts

3+Earth / 4 + Earth Contact Insert Outline Drawing and Dimensions
