62LC-12E10-06SN(771), Amphenol Limited MIL Spec Circular Connector, 6 Contacts, Panel Mount, Socket, Female, 62LC Series, Разъем

Amphenol Circular Connector

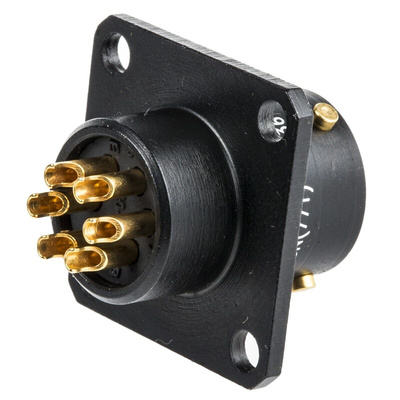

The Amphenol 62LC series 6-contacts, female circular connector has socket type connection. This panel mount connector has a voltage rating of 700VDC/AC and a current rating of up to 7.5A per contact. It has a bayonet mating connection for quick and reliable connecting.
Note:
Cable mount plugs will only mate with chassis mount sockets and cable mount sockets will only mate with chassis mount plugs
Amphenol BLZC (Black Zinc):
Black zinc cobalt-plated bayonet locking connectors are interconnectable and interchangeable with connectors that conform to MIL-C-26482 and BS9522 F0017 requirements. Of a commercial-grade, they are machined from aluminium alloy and provide durability and resilience in industrial environments. The black plating offers an aesthetically pleasing finish to the connectors. Connector pins and sockets are prefitted solder bucket type. The cable plugs are supplied complete with backshell. These connectors will also take the spin coupling backshells and have the same thread as 62GB connectors.

Features and Benefits

Rugged and reliable
Straight body orientation
Solder termination
Waterproof
Shell size is 10mm
Operating temperature ranges between -55°C and 125°C

Applications

Military applications
Industrial applications

Certifications

BS9522 F0017
MIL-C-26482
