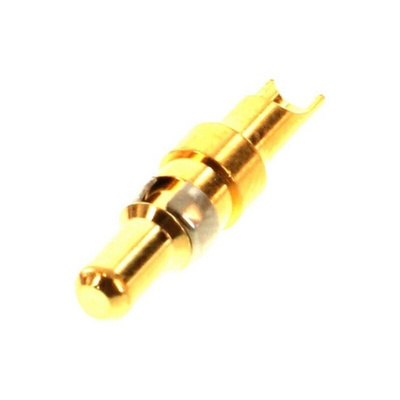

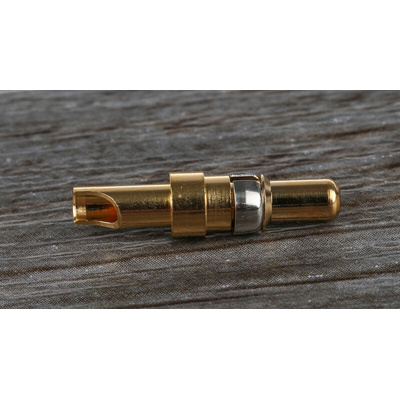

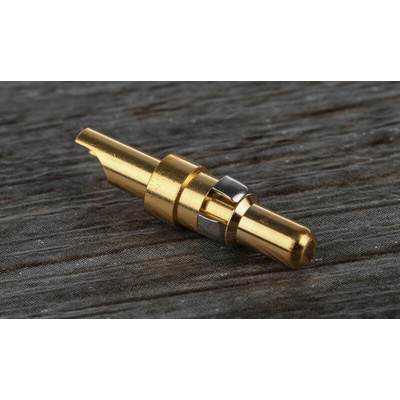

RS PRO Male Solder D-Sub Connector Power Contact, Gold over Nickel Power, 16 → 12 AWG, Контакты

RS PRO Male Solder D-Sub Connector Power Contact, Gold Over Nickel Power, 12 → 16 AWG

This D-Sub connector power contact is commonly found in the circuit boards of computers and electronic systems. It's best suited for use in mixed layout connector shells, as it offers a sustained connection.

This quality piece of equipment is suited for 20 A contacts. It has a total of 17 mixed snap-fit contacts, 15 signal contacts and two cavities for both coaxial and power contacts. The female contact has four PCB (printed circuit board) holes and is able to carry a combination of power connections and signal. The plug and socket options are also made with solder bucket or 90° PCB terminations.

As part of the RS PRO range, the contact has been fully approved and tested by engineers for quality and is RoHS (Restriction of Hazardous Substances) compliant so won't contain harmful substances like lead or mercury.

Features and Benefits

• Male Copper alloy contact material with gold over nickel contact plating
• Maximum contact resistance of 50 Ω
• 12 AWG to 16 AWG (American Wire Gauge)
• 17W2 shell can have 17 mixed contacts in total
• Current rating of 20 A
• Length of 22.4 mm
• Solder termination
• PCB (printed circuit board) mounting inserts are not suitable for right-angle PCB connectors
