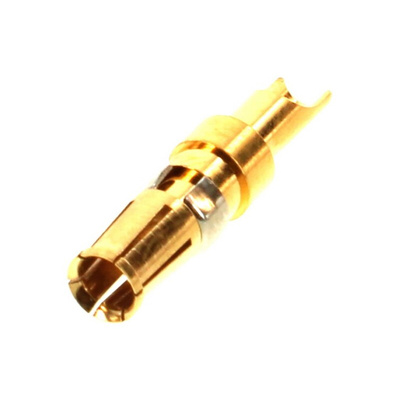

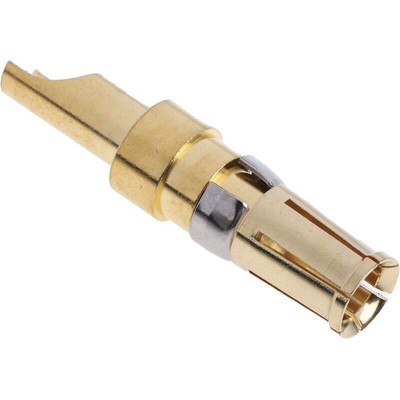

RS PRO Female Solder D-Sub Connector Power Contact, Gold over Nickel Power, 16 → 12 AWG, Контакты

RS PRO Female Solder D-Sub Connector Power Contact, Gold Over Nickel Power, 12 → 16 AWG

This D-Sub connector power contact from the RS PRO range is commonly used in circuit boards found in computer and electronic systems. It's best suited for use in mixed layout connector shells, as it offers a sustained connection.

This piece of equipment is suited for 20 A contacts. It has a total of 17 mixed snap-fit contacts, 15 signal contacts and two cavities for both coaxial and power contacts. The female contact has four PCB (printed circuit board) holes and is able to carry a combination of power connections and signal. The plug and socket options are also made with solder bucket or 90° PCB terminations.

As part of the RS PRO range, the contact has been fully approved by engineers for quality and is RoHS (Restriction of Hazardous Substances) compliant, so won't contain dangerous levels of hazardous materials.

Features and Benefits

• Copper alloy contact material with gold over nickel contact plating
• Female power contact
• Maximum contact resistance of 50 Ω
• 12 AWG to 16 AWG (American Wire Gauge)
• 17W2 shell can have 17 mixed contacts in total
• 20 A current rating
• Length of 22.8 mm
• Solder termination
• PCB (printed circuit board) mounting inserts are not suitable for right-angle PCB connectors
