RS PRO , Straight , Female Gold , Copper Alloy , Backplane Connector Contact, Контакты

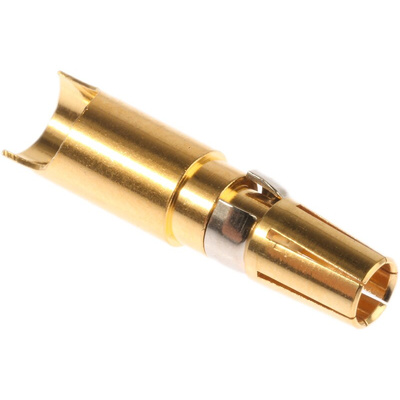

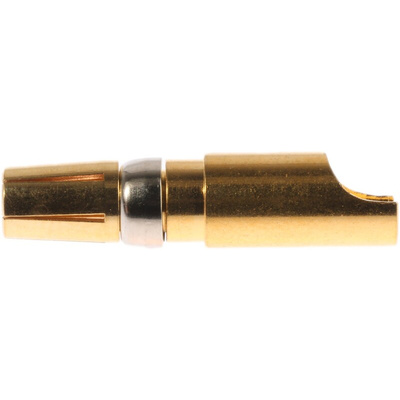

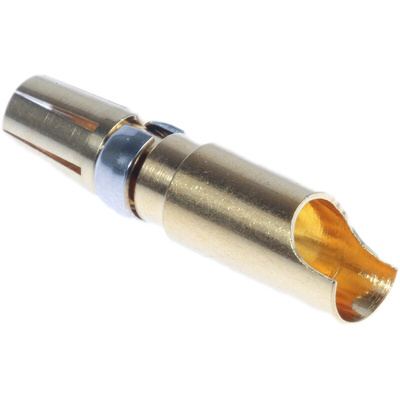

RS PRO Straight Female Gold Copper Alloy DIN Connector Contact

If you're building a DIN connector for your computer system, this straight contact from RS PRO will create a solid and reliable connection. It's made from copper alloy for improved conductivity, and it's gold-plated for resistance to corrosion. This contact is cable-mounted, so it mounts directly onto a coaxial cable for simple assembly.


The unit's straight pin design makes it suitable for solder bucket terminations. You can use this type of contact to connect two parellel printed circuit boards (PCBs) or plug-in cards and backplane wiring.


As part of our RS PRO range, this product has been stringently tested to ensure quality and consistency. You'll find these DIN connectors used for measurement and control applications, as well as in telecommunications.

Features and Benefits

• Suitable for use with a DIN41612 type M female connector


• Maximum contact resistance of 1 mΩ


• Current rating of 40 A


• Operating temperature range of -55°C to +125°C


• Complies with RoHS (Restriction of Hazardous Substances) standards


• Complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
