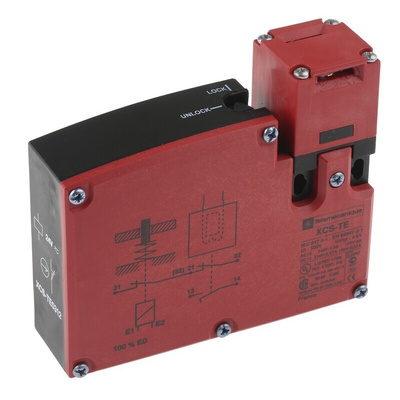

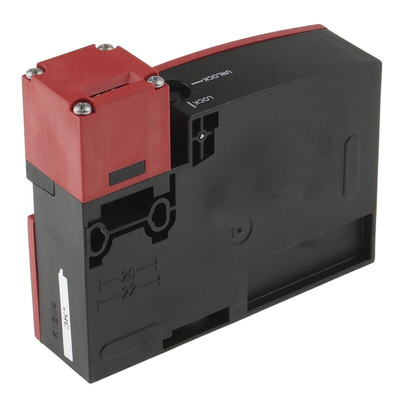

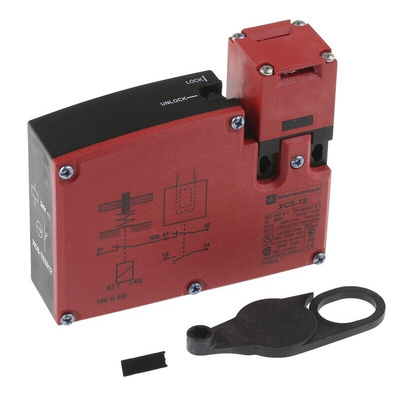

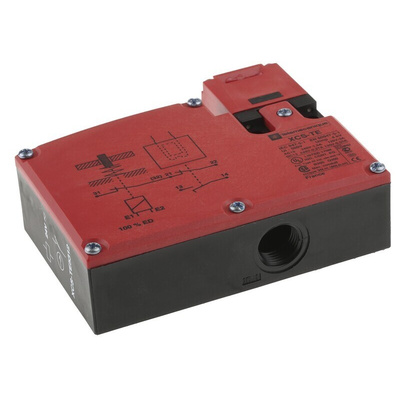

XCSTE5312, Telemecanique Sensors XCS-TE Series Solenoid Interlock Switch, Power to Unlock, 24V ac/dc

Telemecanique Sensors XCSTE Solenoid Interlock Switch.

From Telemecanique Sensors this is the XCSTE series of safety solenoid interlock switches providing you with the solution when running machinery and a guard or door stays closed. Interlock switches protect machine operators by stopping the equipment when the door or guard opens by withdrawing the actuator attached from the switch head. The XCSTE solenoid interlock switch is ideal for use with light duty industrial machines with a low rundown time.

Features.

Suitable for interlocking small moveable guards (EN1088, EN60204, EN292)
2 positive opening contacts as standard, on guard opening
1 N/C positive internal control contact operated by the solenoid
Key operated lock to allow authorised override of solenoid
Solenoid continuously rated 10VA, voltage limits -20 / +10% (including ripple on d.c.)
Turret heads can be rotated through 360° in 90 steps
8 actuator entries and 1 tapped entry
Contact rating 10VA (Solenoid continuously rated)
15N minimum operating force for positive opening
IP67 rating

Note

Actuators must be purchased separately.

XCSTE5312 Safety Switch Sensor.

The Telemecanique Sensors XCSTE5312 series solenoid interlock switch has a power supply voltage rating of 24VAC/DC. It has 1 NC safety slow break contacts. The switch is made of a Plastic housing material and is interlocking, locking and unlocking by solenoid.

Features and Benefits.

• Preventa Safety Detection, Safety Switch.


• Rectangular design.


• Plastic (body and head – PA Polyamide).


• Key operated turret head.


• 1 NC / 1 NO (slow break).


• 1 cable entry tapped for M16 x 1.5.


• 2 Poles.


• Terminal clamping.


• Locking – interlocking by solenoid.


• Operating temperature is between -25°C and 60°C


• Mechanical life is up to 1000000 cycles


• Weight 0.36 kg.

Certifications.

• IP67 rated, EN 1088/ISO14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/ISO 12100.


• UL508, CSAC22.2 No 14.
