XMLA010A2S11, Telemecanique Sensors Pressure Sensor, 0.6bar Min, 10bar Max, Relay Output, Differential Reading, Датчик давления

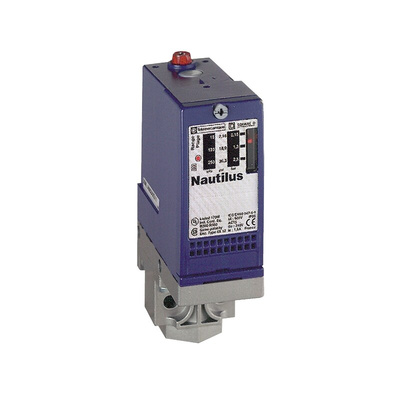

OsiSense XMLA Pressure Switches

Schneider Electric XMLA pressure switches for control circuits are used to control the pressure of hydraulic oils, fresh water, sea water, air, steam, corrosive fluids, or viscous products. The XMLA pressure and vacuum switches have a fixed differential and are for detection of a single threshold.

Fixed differential
External pressure setting window available
1 NO & 1 NC snap acting contacts
Temperature range: –25 to +70 °C
Enclosure rating: IP65 with plug-in connector, IP66 with terminal connections
Operating rate: up to 120 operations / min. for diaphragm and 60 / min. for piston
Media connection: 1/4" NPT
Conduit connection: 1/2" NPT

Note

Pressure quoted is 'per cycle' and (occasional)

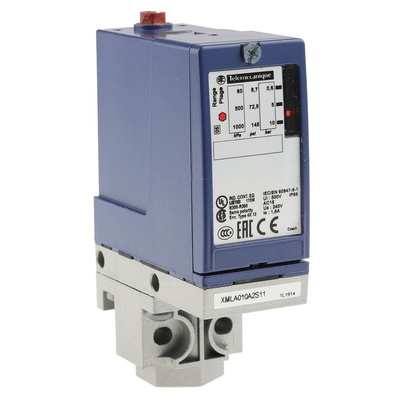

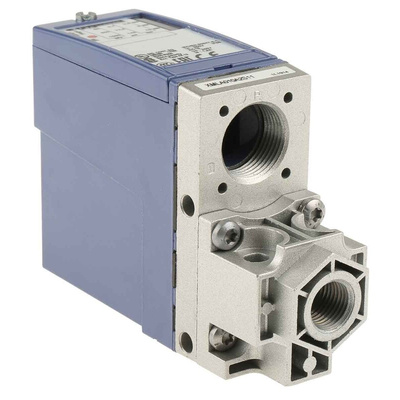

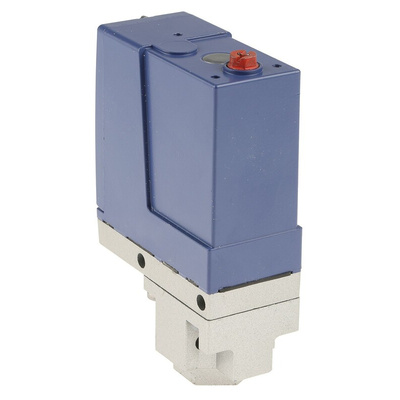

Telemecanique Sensors Pressure Sensor, Differential Reading Type, G1/4 Process Connection - XMLA Series - XMLA010A2S11

Ramp up efficiency in your processes with this pressure sensor from Telemecanique Sensors. You can use it to measure and control the pressure of many fluids and gases, from fresh water, sea water and steam to air, hydraulic oils and corrosive substances. The sensor uses differential pressure readings from two points in your system to give you a heads-up when the pressure or flow rate drops. Its zinc alloy housing is hardwearing and resistant to corrosion, so you can be sure of a long lifespan.

Features & Benefits

• Broad range of pressure readings between 0.6 bar and 10 bar for versatility
• Readings accurate to 2% off actual values, giving you a precise picture
• PG13.5 cable gland electrical connection and G1/4 process connection for simple installation

Applications

• Industrial automation
• Energy production
• Automotive manufacture

Can I use this pressure sensor in extreme temperatures?

Yes – this pressure sensor has a broad operating temperature range between -25°C and +70°C, so it's ideal for harsh environments.

Is this unit suitable for washing down?

An IP66 rating with terminal connections means the unit's protected against powerful jets of water. It's also completely shielded from dust.
