2814359, Phoenix Contact MCR-SLP Series Current Measuring Transducer, Current Input, Current Output, Преобразователь тока

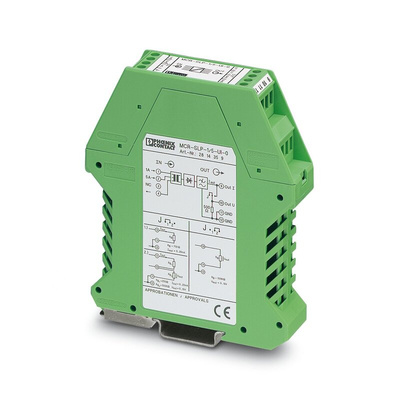

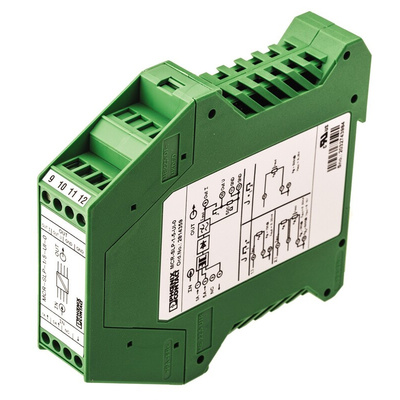

Phoenix Contact Current-Measuring Transducer, 5A Input Range, Chassis Mounting - MCR-SLP-1-5-UI-0 - 2814359

Aiming for accurate readings? This current-measuring transducer from Phoenix Contact hits the nail on the head. It transforms a sinusoidal AC input between 1 and 5A into analogue signals between 0 and 20mA or 0 and 10V. A low transmission error of 0.5% means you can count on precise results.
As this transducer draws power from the existing measuring circuit, there's no need for an additional power source. Limit-monitoring capabilities let you check current levels and receive alerts if those limits are exceeded, helping to prevent damage to equipment.
As this device comes in lightweight polyamide housing, which is resistant to corrosion, it's easy to handle and won't wilt under the pressure of a harsh setting. LED indicators make status monitoring and troubleshooting a walk in the park. You can find transducers like this one in industrial automation and renewable energy systems.

Features & Benefits

• IP20 rating indicates it's protected against objects over 12.5mm in size, so it's finger-safe
• Space-saving dimensions of 22.5 (W) x 99 (H) x 114.5mm (D) for use in tight spots
• Screw connection for effortless setup without reaching for special tools

Datasheet 2814359

2814359 Instructions

Line Drawing - 2814359
