RS PRO Tee 50Ω RF Adapter BNC Plug to BNC Socket 1GHz, Переходник

3034961
Производитель: RS PRO
Цена за шт.
7991.10 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

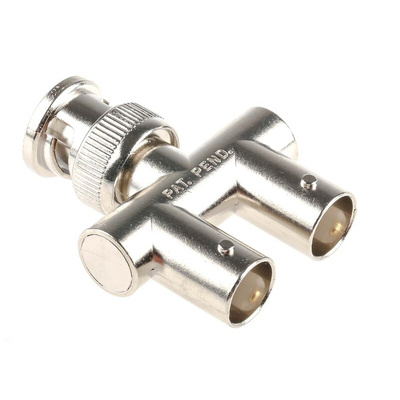

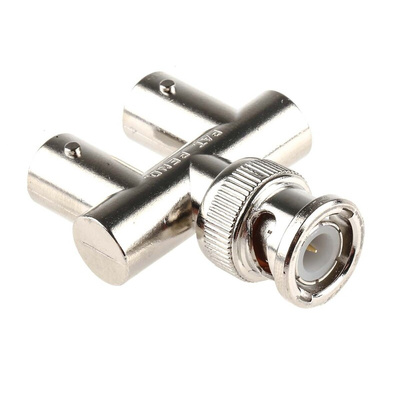

RS PRO Tee 50 Ω RF Adapter BNC Plug to BNC Socket 1 GHz

Need to turn one BNC socket into two to make a quick radio-frequency (RF) connection between coaxial cables? This 50 Ω goalpost adapter from the RS PRO range will let you do just that. It's nickel-plated body, nuts and washers are resistant to corrosion. A gold-plated centre contact optimises signal transmission, with a maximum contact resistance of 1.5mΩ on the centre contact and 0.5mΩ on the outer contact. The unit will survive at least 500 mating cycles.

This RF adapter has a working voltage of 335 V and is voltage proof to 750 V. The 38.2±0.3 mm-long coax adapter has an operating frequency of 1 GHz. Its safety has been tested against a range of international standards. That means it won't damage your equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007).

This kind of adapter is suitable for a variety of applications including video signalling and test equipment.

Features and Benefits

• BNC socket to 2 x BNC socket goalpost adapter
• RF adapter
• Impedance of 50 Ω
• Nickel-plated body to resist corrosion
• Gold-plated contacts for optimum transmission of signal
• 38.2±0.3 mm
• Uses include video signalling and test equipment
• Operating temperature range of -65 to +85°C
• Operating frequency of 1 GHz
• Insulation resistance rated at 5,000 mΩ for a minute
• Internal insulator made from PTFE

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
