RS PRO Pneumatic Piston Rod Cylinder - 25mm Bore, 80mm Stroke, ISO 6432 Series, Double Acting, Пневмоцилиндр

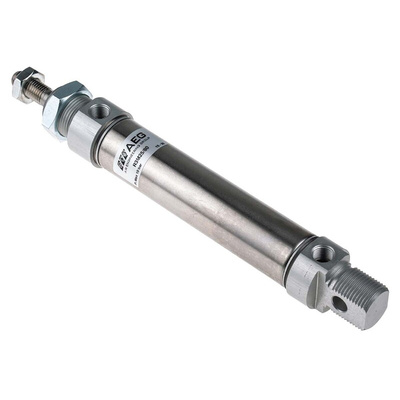

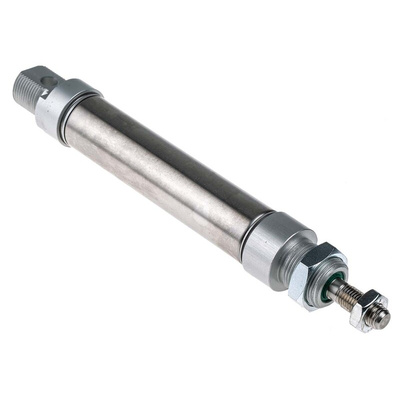

RS PRO Pneumatic Roundline Cylinder 25 mm Bore, 80 mm Stroke, ISO 6432 Series, Double Acting

This pneumatic roundline cylinder from the reliable RS PRO range allows you to control the flow of air in pneumatic systems. As a double-acting cylinder, it can control the flow in both directions.

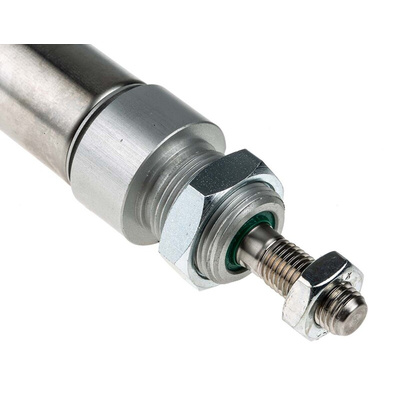

With a durable stainless steel body and magnetic stainless steel pistons, this cylinder will offer high performance and a long lifespan when used with either lubricated or non-lubricated air. It's supplied with a mounting lock nut to hold it securely in place and a piston rod lock nut to act as an end-of-stroke buffer. Pre-lubricated nitrile rubber seals guard against leakage, while high-strength sintered bronze nose bearings are self-lubricating and resist corrosion. Anodised aluminium end caps also aid lubrication and corrosion resistance.

These cylinders are used to manage the flow of air in pneumatic systems. This type of system is commonly found in applications ranging from heating, ventilation and air conditioning (HVAC) control to vacuum pumps.

Features and Benefits

• Pneumatic roundline cylinder
• Double-acting cylinder can manage flow in both directions
• 25 mm bore
• 80 mm stroke
• Single rod
• Buffer cushioning type
• For use with lubricated or unlubricated compressed air
• Pressure range of 1-10 bar
• Maximum operating temperature of +80˚C
• Minimum operating temperature of -20˚C
• Standard G 1/8 in thread
• Stainless steel body
• Sintered bronze nose bearings and anodised aluminium end caps aid lubrication and resist corrosion
• Pre-lubricated nitrile rubber seal guards against leakage
• Supplied with nose nut and piston rod nut
• Manufacturer series ISO 6432
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant
