RS PRO Pneumatic Roundline Cylinder - 25mm Bore, 100mm Stroke, ISO 6432 Series, Double Acting, Пневмоцилиндр

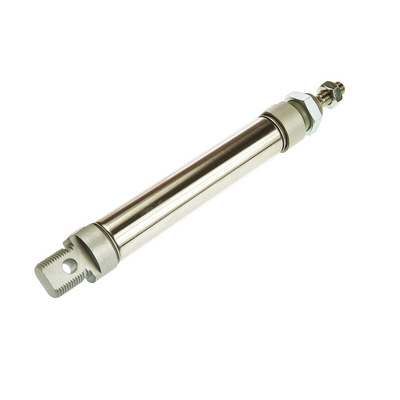

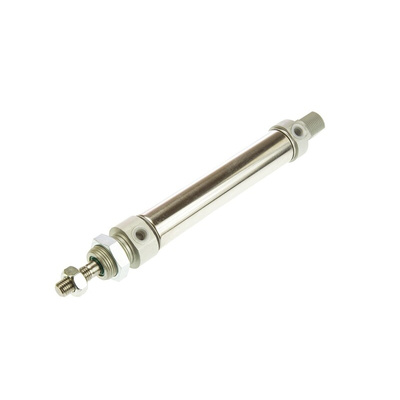

RS PRO Pneumatic Roundline Cylinder 25 mm Bore, 100 mm Stroke, ISO 6432 Series, Double Acting

This pneumatic roundline cylinder from RS PRO is a high-quality piston that uses air pressure to create a rhythmic pumping movement. It's double-acting, so the air pressure applies to each end alternately and gives it a greater stroke length than the majority of single-acting cylinders. The piston has a built-in end-of-stroke buffer that reduces wear and tear and cushions the impact of the unit. This enhances the piston's durability and prevents jolts to the system. This is a long-lasting device, even when used with non-lubricated air, meaning it's appropriate to use with oil-free air compressors.The cylinder's sturdy stainless steel material makes it a resilient choice. Thanks to its compact size, it's a good choice for use in tight spaces in a variety of industrial settings.

Features and Benefits

• Double action


• Bore of 25 mm


• Buffer cushioning type


• Maximum operating pressure of 10 bar


• Operating temperature range of -20°C to +80°C


• G 1/8 port connection


• Single rods


• Stroke of 100 mm

RS Pro Datasheet
