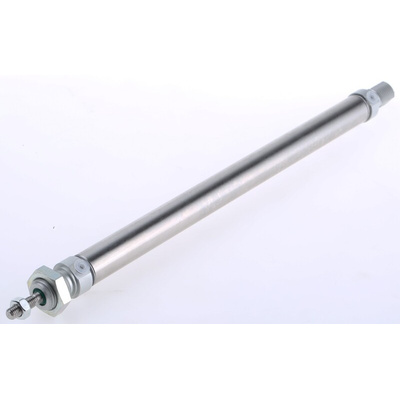

RS PRO Pneumatic Piston Rod Cylinder - 16mm Bore, 200mm Stroke, ISO 6432 Series, Double Acting, Пневмоцилиндр

10 - 25mm Diameter

The RS range of ISO 6432 cylinders give high performance and long life even when used with non-lubricated air. Available in both single acting and double acting versions, with magnetic stainless steel pistons on all models Ø12mm and above.

AISI 304 stainless steel body
AISI 303 stainless steel piston rod
Sintered bronze nose bearing
Pre-lubricated NBR seals
Anodised aluminium end caps
End of stroke buffer
Pressure range: 1-10 bar
Ambient temp. Range: -20°C to +80°C
Medium: Compressed air, filtered, lubricated or non-lubricated
Supplied with nose nut and piston rod nut

Note

Outward Thrust and Return Thrust figures quoted are at 6 bar.

RS Pro Datasheet
