RS PRO Pneumatic Piston Rod Cylinder - 25mm Bore, 50mm Stroke, ISO 6432 Series, Double Acting, Пневмоцилиндр

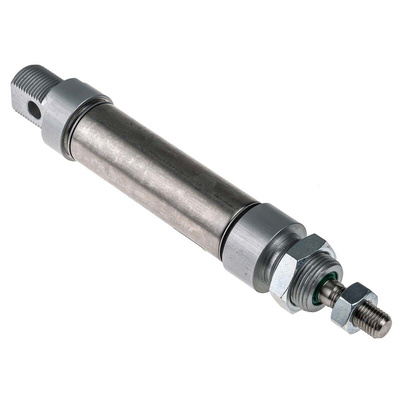

RS PRO Pneumatic Roundline Cylinder 25 mm Bore, 50 mm Stroke, ISO 6432 Series, Double Acting

Move light to medium-weight objects easily with this RS PRO pneumatic roundline cylinder. Designed for commercial and industrial applications, it has a high performance and long life – even when used with non-lubricated air.

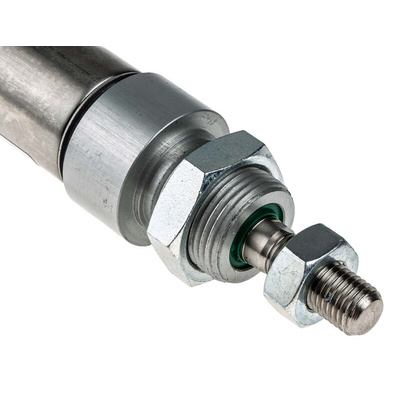

The cylinder has a hardwearing AISI 304 stainless steel body, with a AISI 303 stainless steel piston rod. It features a sintered nose bearing, made from highly porous bronze. The NBR seals come pre-lubricated to make installation as straightforward as possible. You'll also find a nose nut and piston rod nut inside this kit.

This pneumatic roundline cylinder has a pressure range of 1 to 10 bar. It functions in temperatures from -20°C to +80°C, so is suitable for a range of environments. As part of our RS PRO collection, it's been stringently tested by engineers for durability and reliability. It's widely used on production lines and with packaging equipment.

Features and Benefits

• Bore size of 25 mm
• Operates from -20°C to +80°C
• Maximum operating pressure of 10 bar
• Single rods
• Buffer cushioning
• Double action
• Port connection of G 1/8
• ISO 6432 manufacturer series

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
