RS PRO Pneumatic Roundline Cylinder - 25mm Bore, 320mm Stroke, ISO 6432 Series, Double Acting, Пневмоцилиндр

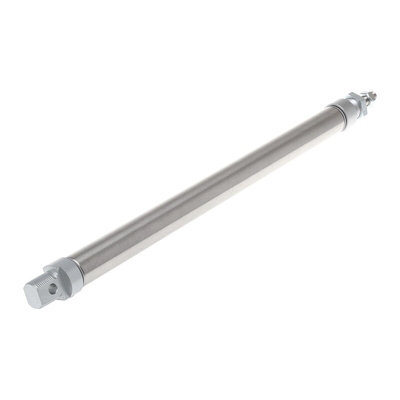

RS PRO Pneumatic Roundline Cylinder 25 mm Bore, 320 mm Stroke, ISO 6432 Series, Double Acting

This pneumatic roundline cylinder from the RS PRO range is a high-performance piston that generates a continuous pumping action using air pressure. As pressure is applied to each end alternately, this double-acting cylinder has a longer stroke length than conventional single-acting cylinders. For increased durability, it has a built-in end-of-stroke buffer to cushion the impact of the piston. This reduces wear and tear and limits jolts to the system. As it's made of stainless steel, it's strong and resistant to corrosion, meaning it will hold up even in harsh conditions.
You can use this product with oil-free air compressors as it's long-lasting even when used with non-lubricated air. The compact dimensions make this cylinder a good choice for industrial applications where space is limited.

Features and Benefits

• Double action


• Bore of 25 mm


• Buffer cushioning type


• Maximum operating pressure of 10 bar


• Operating temperature range of -20°C to +80°C


• G 1/8 port connection


• Single rods


• Stroke of 320 mm

RS Pro Datasheet
