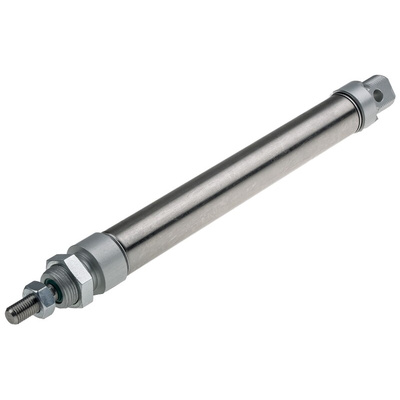

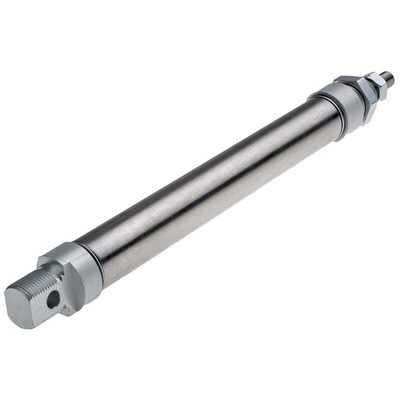

RS PRO Pneumatic Roundline Cylinder - 25mm Bore, 160mm Stroke, ISO 6432 Series, Double Acting, Пневмоцилиндр

RS PRO Pneumatic Roundline Cylinder 25 mm Bore, 160 mm Stroke, ISO 6432 Series, Double Acting

Need a high-performance piston for use in your air compressor? Choose this RS PRO pneumatic round line cylinder. It's double-acting, so the air pressure applies alternately to each end to produce a longer stroke length than most single-acting cylinders.
Thanks to the built-in end-of-stroke-buffer that cushions the impact of the piston, the cylinder is protected against excessive wear and jolts. It's made of stainless steel, so it's corrosion-resistant and strong enough to withstand heavy-duty industrial use.
This cylinder is a durable choice even when used with non-lubricated air, meaning you can safely use it with oil-free air compressors. Its compact dimensions and durability make it well-suited for use in tight spaces in industrial environments.

Features and Benefits

• Double action


• Bore of 25 mm


• Buffer cushioning type


• Maximum operating pressure of 10 bar


• Operating temperature range of -20°C to +80°C


• G 1/8 port connection


• Single rods


• Stroke of 160 mm
