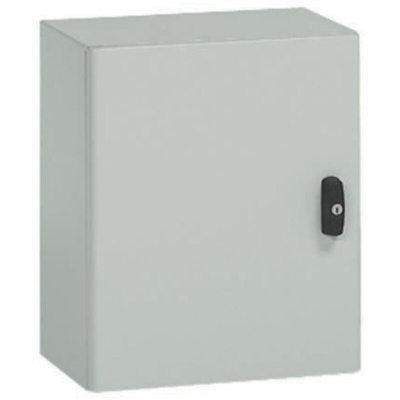

0 355 07, Legrand Atlantic Series Steel Wall Box, IP66, 500 mm x 400 mm x 250mm, Настенный шкаф

Legrand Atlantic Steel Enclosuress

The Atlantic range of stainless steel wall mounting enclosures meet the most stringent requirements making them a suitable wall box for harsh environments.

Features and Benefits

• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water of similar force to heavy seas
• External mechanical impact resistance of IK10 (20 Joules) meaning the wall box gives protection against a 5 kg object dropped from approximately 40 cm
• Waterproof seal
• Easy to remove with metal pins
• Excellent resistance to chemicals
• Textured polyester coating gives excellent resistance to corrosion and weather elements
• Can be used in vertical or horizontal position

Note

The wall boxes are designed to accommodate accessories such as Lina 25 profile uprights, Lina 25 cross pieces and Lina 25 perforated plates.

Caution

When using on a roof only use in the horizontal position

0 355 07 Marina Enclosure

Features

• Polyurethane foam seal
• 80 μm thick textured polyester coating
• Door is reversible with a single closure mechanism

What are the external dimensions?

The 0 355 07 enclosure has external dimensions of 500 x 400 x 250 mm.

Can the wall mounted box be used outside?

The 0 355 07 has an Ingress rating of IP66 so can be used inside or outside.

Note

No chassis plate is supplied with this steel enclosure.

Cabinets and Accessories Data Sheet

Datasheet

0 355 07 Selection Chart

0 355 07 Technical Data

Instalation Guide
