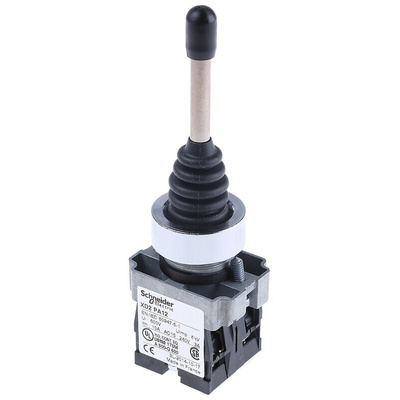

XD2PA12, Schneider Electric 2-Axis Joystick Switch Lever, Slow Break, IP65 240V ac, Джойстик-переключатель

Schneider Electric | Harmony XD2 Series | Joystick Switches

Integral to industrial and commercial control industries alike, the Joystick Switch helps you position machinery where you need it. Schneider Electric brings you the robust Harmony XD2 series of Joystick Switch, able to continually control devices reliably even in adverse conditions.

Features and benefits:

• Head for joystick controller, round in shape with a spring return to zero position.

• Light-weight, compact in size, the XD4 Joystick can operate in areas with limited space.

• Chromium-plated bezel with a Zamak based fixing collar.

• SPST - NO configuration.

• 2 or 4 (Dual-axis, Quad-Axis) position joystick controller with 54 mm shaft.

• 1,000,000 mechanical durability for increased longevity, further reducing your long-term costs.

• 18-month manufacturer warranty.

Protection ratings & Safety features:

• 10 A cartridge fuse (type gG conforming to EN/IEC 60947-5-1) for greater short-circuit protection.

• IP 66 rated (total protection against dust with a high degree of water protection but not suitable for total submersion).

• NEMA rated (further protection against dirt, dust, and water, see datasheet for full spec).

• Vibration resistance up to 5 gn & 50 gn of shock resistance.

• Ambient operating temperature of -25°C to 70°C, suitable in a wide variety of environments.

Applications:

• Can be easily integrated into various control panels.

• Maritime sectors.

• Medical sectors.

• Heavy-duty machinery / Industrial controls.
