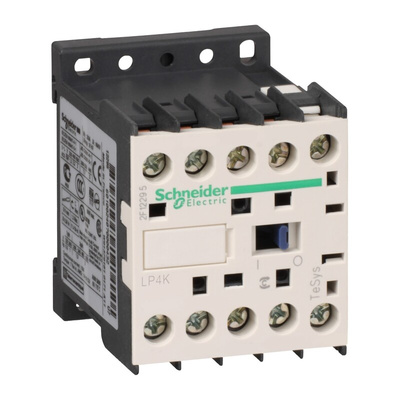

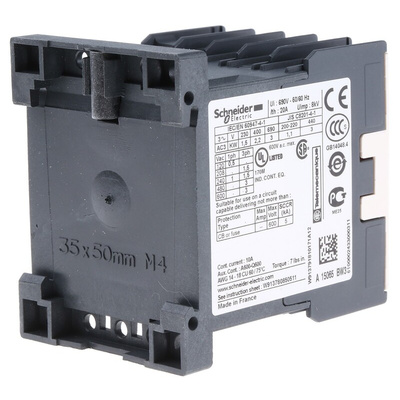

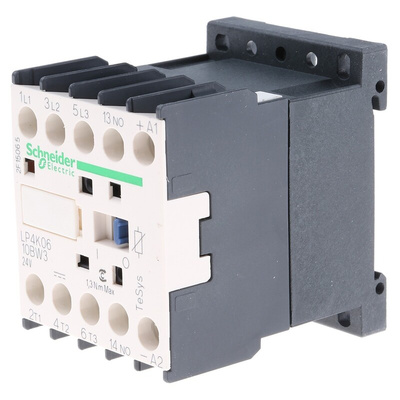

LP4K0610BW3, Schneider Electric LP4K Series Contactor, 24 V dc Coil, 3-Pole, 6 A, 3 kW, 3NO, 600 V ac, Контактор

Schneider Electric 3-Pole Contactor, 3kW Power Rating, 24V DC Coil Voltage - LP4K Series - LP4K0610BW3

Control your industrial motor with this high-performance contactor from Schneider Electric. It's an AC-3 and AC-4 device, meaning it's built for starting, inching and switching high inductive loads. It's also a 3-pole contactor, so it can control three circuits at the same time to conserve space and eliminate the need for excess wiring. This component's thermoplastic housing provides impact resistance and insulation from electric shock. It weighs just 235g, so it's easy to handle and won't strain your equipment.

• Compact dimensions of 58 (H) x 45 (W) x 57mm (D) make it suitable for setups with limited space
• Wide operating temperature range of -25°C to +50°C for use in demanding environments
• IP20 (ingress protection) rating indicates ability to withstand dust and objects larger than 12mm in size
• Panel or DIN rail mounting options for versatility

Applications

• Squirrel cage motors
• Industrial fans
• High and low pressure compressors

What's the difference between an AC-3 and AC-4 duty?

AC-3 duty involves starting and stopping high inductive loads, while AC-4 duty comprises starting and stopping as well as plugging and jogging operations.

The LPK4 lower power contactors can only be used with the 2 pole auxiliaries they will not work with the 4 pole auxiliaries.
