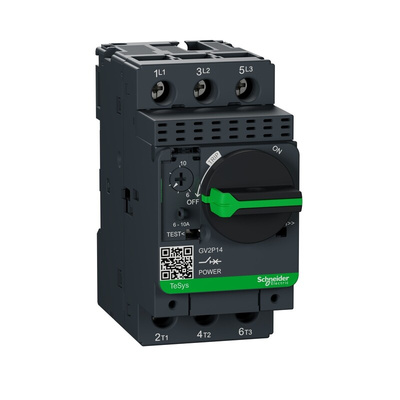

GV2P14, Schneider Electric 6 → 10 A TeSys Motor Protection Circuit Breaker, Автоматический выключатель

Schneider Electric | GV2P Series | Motor Protection Circuit Breaker

Protecting your motors from faults such as an overload of high voltage, short circuits, or relay shutdowns is vital in an age where any downtime can be detrimental to a business and its operations. Schneider Electric has built a reliable, robust series known as the GV2P series of Motor Protection Circuit Breaker to act as an intermediary between your devices, protecting vital equipment in the event of unforeseen incidents.

Features and benefits:

• Flexibility in locking the N/C position via the use of 3 padlocks is available.

• Motor Protection Switch rotary knob style control type.

• 100,000 cycles of electrical/mechanical durability.

• Light-weight, robust and compact in its design, the GV2P series is perfect for tight spaces.

• If used on its own, the MPCB has manual or local control. Combined with a contactor and you have access to an automatic & remote control.

• Spring terminal & Screw clamping is available.

• Thermal- magnetic trip unit technology.

Protection ratings & Safety features:

• Live parts are inaccessible to any direct contact from external users, improving the safety of operations around the MPCB.

• Thermal-magnetic trip technology to help protect the unit built into the circuit-breaker.

• EN 60204, IEC 60947-1, IEC 60947-2, IEC 60947-4-1 standard ratings (full list in the datasheet).

• Certified ATEX, BV, CCC. CSA and more (full list in the datasheet).

• IP20 degree of protection, conforming to IEC 60529 - further protection against solid objects e.g a persons fingers.

• IK04 degree of protection - impacts of up to 0.5 Joules to the device offer limited protection.

Applications:

• Electrical Motor Control and protection

• Easily assembled into any configuration by screw or clip-fixing onto mounting rails.

How do you select the right Motor Protection Circuit Breaker?

MPCBs are more critical now than ever. Most infrastructure now relies on a motor behind the scenes to power critical uninterruptible systems such as heating, ventilation, cooling all of which we take for granted. These systems are vital in ensuring business productivity and therefore must be protected against overcurrent, thermal overloads and much more.

To select the right MPCB, consider the systems you and your business rely upon. Checking the features and benefits of each MPCB will prove invaluable when deciding what critical infrastructure you wish to protect.

Schneider Electric GV2P Series Motor Protection Circuit Breaker, 6 to 10A Control Voltage, 89mm Overall Length - GV2P14

This motor protection circuit breaker by Schneider Electric is designed to ensure the safe operation of motors in various industrial applications. With a control voltage range of 6 10A, this device provides reliable protection against overloads and short circuits, safeguarding the motor from potential damage. The TeSys GV2P series is known for its high performance and durability, making it an ideal choice for motor protection needs.

Features & Benefits

• Thermal magnetic trip unit technology for precise protection
• Suitable for AC power networks with a category A utilization category
• Easy installation on a 35mm symmetrical DIN rail or panel mounting
• Rotary handle for convenient control
• Wide range of motor power compatibility, up to 5.5kW at 690V AC
• High breaking capacity of up to 100kA for reliable protection
• Conforms to IEC standards for safety and performance

Applications

• Ideal for motor protection in Industrial automation systems
• Used for motor circuit protection in electrical panels
• Suitable for protecting motors in mechanical equipment
• Commonly employed in HVAC systems for motor security

Can it handle a wide range of motor power inputs?

Yes, it is capable of handling motor power inputs up to 5.5kW at 690V AC.

Will it provide reliable protection against short circuits?

Yes, it offers a high breaking capacity of up to 100kA, ensuring reliable protection against short circuits.

Is it easy to install on standard DIN rails?

Yes, it can be easily installed on a 35mm symmetrical DIN rail, making it convenient for panel mounting in various applications.

Can it be used in HVAC systems for motor protection?

Yes, the Schneider Electric motor protection circuit breaker is commonly used in HVAC systems to safeguard motors from overloads and short circuits.
