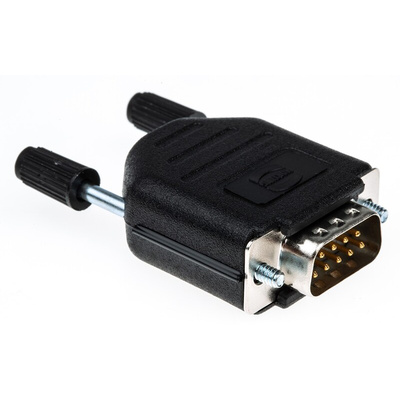

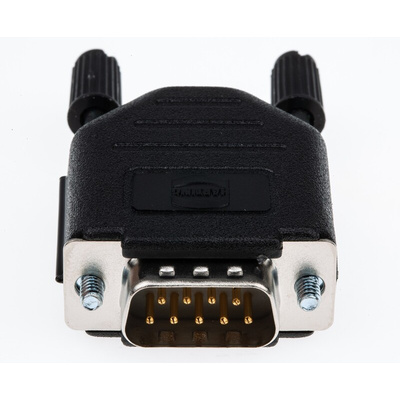

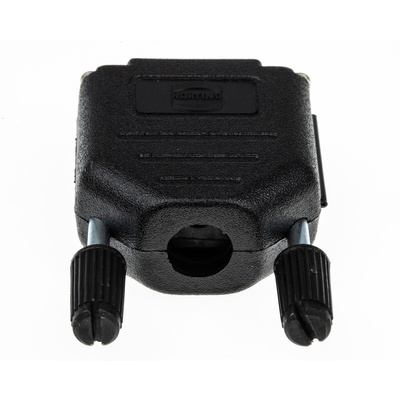

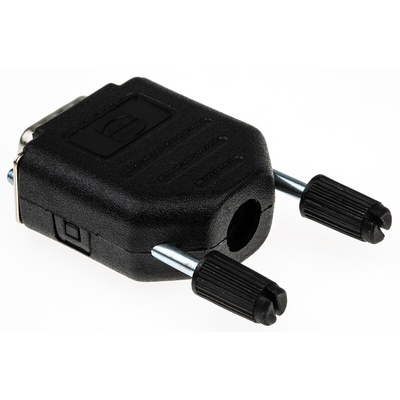

6667009910599, HARTING 9 Way Cable Mount D-sub Connector Plug

Connector Kit (Cable Mounting)

A range of D-Sub Plug or Socket solder termination backshell Connector Kits available in 9, 15, 25 and 37 ways.
Kits include: five solder bucket D sub connectors, five top entry plastic backshells with cable clamp and five pairs of jackscrews with 4-40 UNC thread, for the fabrication of five connector assemblies.

9 way stock number 306-2720 Plug
9 way stock number 306-2714 Socket
15 way stock number 510-9972 Plug
15 way stock number 510-9988 Socket
25 way stock number 306-2742 Plug
25 way stock number 306-2736 Socket
37 way stock number510-9994 Plug
37 way stock number 511-0001 Socket

Standards

MIL-C-24308; DIN 41652; CECC 75301-802

Hood Catalogue Extract

TB_09 67 009 0424 D-Sub hood Drawing

Connector D-SUB solder 9-way Male - Drawing

Connector Catalogue Extract
