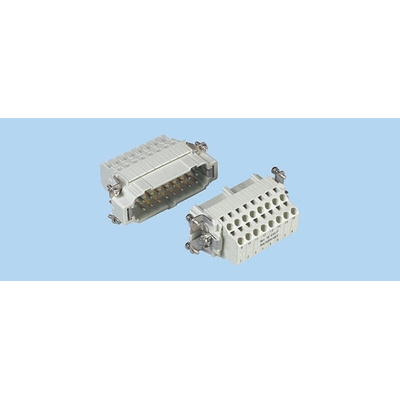

09330242772, HARTING Heavy Duty Power Connector Insert, 16A, Female, Han EES Series, 24 Contacts

Han ESS double output with cage clamps

Connectors in the standard Han E series configurations but connection is made using cage clamps.
There are 2 outputs per contact allowing 2 different wires to be connected to the same point of contact on the connector (avoids adding an external terminal).
Ideal for connecting a motor, they simplify star or triangle connections.
Not for use with low profile hoods.

Approvals

UL, CSA, SEV, BVS,
CERCHAR etc.

Han® ES 16A Cage Clamp Series

These Han® ES inserts are rated at 16A. They are intended for use with hoods and housings contained within ranges 5, 6, 7, & 8. These hood and housing ranges are associated to a specific Harting 'Size' number identifier. See the 'compatibility' table for details of this relationship, and stock numbers of hoods and housings that are typical of each range.

HAN 24 ESS-F Female Insert Drawing
