2966728, Phoenix Contact PLC-OSC- 24DC/48DC/100 Series Solid State Interface Relay, 28.8 V ac/dc Control, DIN Rail Mount, Оптопара

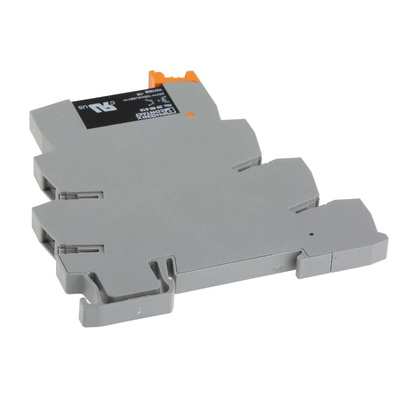

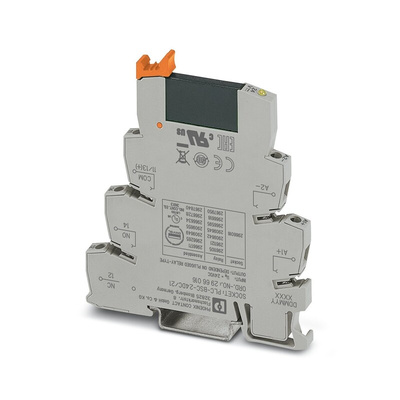

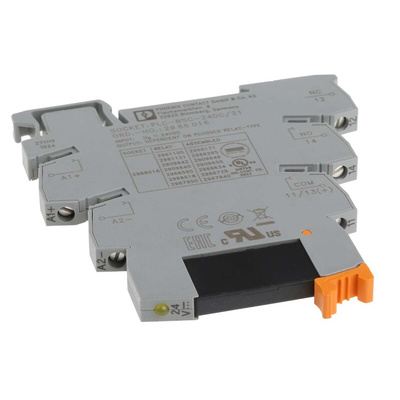

Phoenix Contact Solid State Interface Relay, M3 Screw Connection Type, DIN Rail Mounting - PLC-OSC- 24DC/ 48DC/100 - 2966728

Need a flexible way of controlling a DC circuit? This Phoenix Contact solid state interface relay is the answer. The device uses a 24V DC input to open or close a connected circuit with a rating of 3 to 48V DC. As it does this without any moving parts, there's no risk of wear and tear and you get long-term reliability. Challenging environments are no match for this part, as it withstands temperatures from -25°C to +60°C.
The unit accepts conductors ranging in size from 26 to 14AWG, so it adapts well to a wide range of electrical setups. With a high test voltage of 2.5kV, it happily holds up against electrical surges. Relays like this one control many aspects of industrial automation, from power to motion, heating and lighting.

Features & Benefits

• Built-in LED indicator for hassle-free status monitoring
• Typically draws 8.5mA, so it's an energy-saving component
• Compact measurements of 6.2 (W) x 80 (H) x 94mm (D) for mounting inside a standard-size enclosure
• Designed for mounting in any position for additional flexibility

Datasheet 2966728

Instruction Sheet - PLC-B... / PLC-R... / PLC-O

Line Drawing - 2966728
