2966618, Phoenix Contact OPT-24DC/48DC/100 Series Solid State Relay, Оптопара

Phoenix Contact PLC-RSC Series

PLC Interface single- and double-pole relays, and opto-couplers, having the same profile. This allows the modules to be installed in any configuration with a common bridging system and using the same accessories. The V8 adapter connects 8 relays or opto-couplers to a 15 way D-SUB cable.

Features and Benefits

• Relays and opto-couplers for inputs and outputs with "pluggable" switching devices
• Four bridging slots to reduce wiring; bridging of up to 80 modules is possible
• Screw terminal connections
• LED indicators and diodes for coil suppression
• 250V versions have a switched power rating of 1500VA
• Mechanical life (relays) 1 x 107 operations
• Wide range of accessories also available

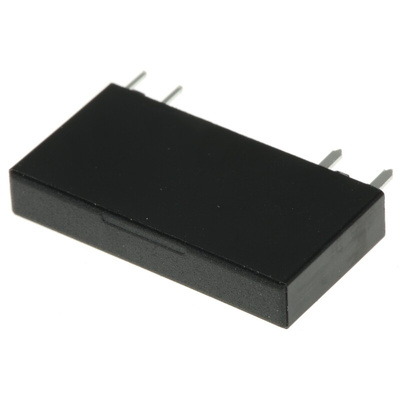

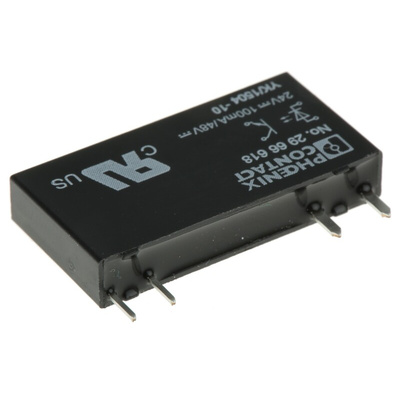

Phoenix Contact Miniature Optocoupler, 24 V, 7 mA - OPT-24DC/48DC/100 - 2966618

This miniature optocoupler from Phoenix Contact is designed to offer bounce-free switching at high frequencies. It features excellent resistance to shock and vibration, making it an ideal choice for harsh industrial applications.
The hard-wearing unit provides a long service life and is completely dust-tight and resistant to water. Its high-grade material composition, together with innovative Phoenix Contact technology, keeps the relay's operating temperature low for improved efficiency. The coupler's modular design means you can install it in any configuration with other relays for convenience and ease of use. Zero spacing is required between units, so you can save on packing space.
It's possible to solder this plug-in solid-state relay to a printed circuit board, and it's well-suited for use with industrial automation equipment. This product is recognised by Underwriters' Laboratories (UL) as safe to use in power installation applications.

• Compact and space-saving profile
• Can be mounted in any position
• Operating temperature range of -25°C to +60°C
• Includes surge and polarity protection
• Dimensions of 5 (W), 28 (H) and 15 mm (D)
• Maximum forward voltage of 24 V
• Maximum input current of 7 mA
