2966595, Phoenix Contact OPT-24DC/24DC/2 Series Solid State Relay, PCB Mount, Оптопара

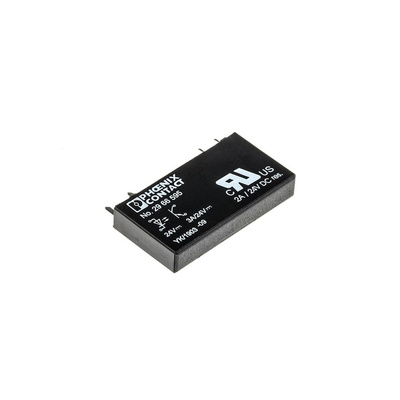

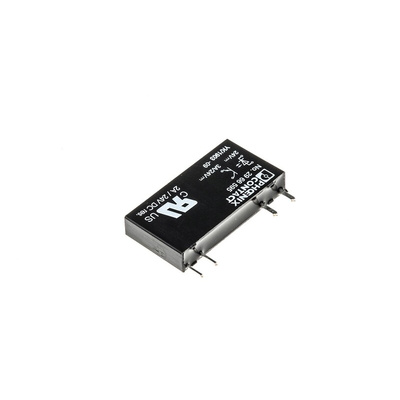

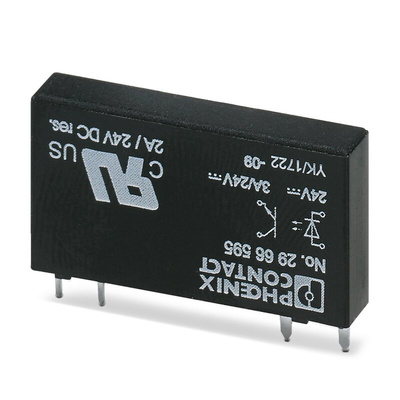

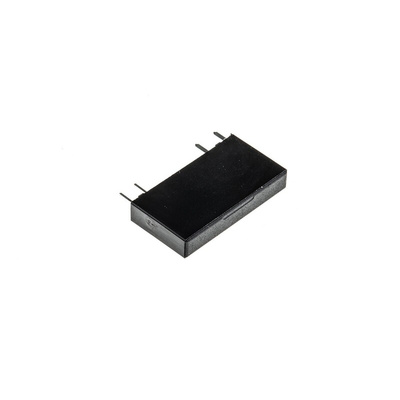

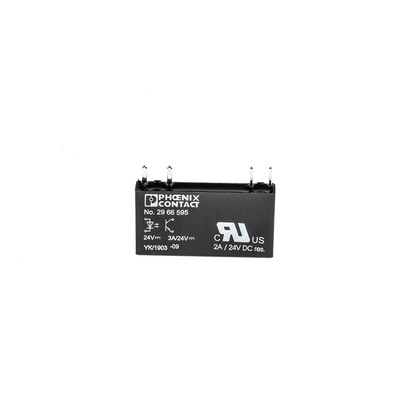

Phoenix Contact Solid State Relay, 2-Conductor Output Circuit Type, 3A Limiting Continuous Current - OPT-24DC/ 24DC/ 2 - 2966595

Looking for a hassle-free way to control your industrial circuitry? Plug in this solid state relay from Phoenix Contact. When supplied with 19.2 to 28.8V DC, it opens or closes a connected electrical circuit with a voltage ranging from 3 to 33V DC. It does this without the need for any moving parts, so you don't have to worry about wear and tear or regular maintenance.
Harsh conditions are no trouble for this hardy unit, as it functions at temperatures between -25°C and +60°C. Thanks to its small size of 5 (W) x 28 x (H) 15mm (D), it doesn't take up much space in your system. You can find SSRs like this one in multiplexers, medical equipment and I/O subsystems.

Features & Benefits

• Mountable in any position to suit your setup
• Typical input current of 7mA assures you it doesn't gobble electricity
• Compliant with the EN 50178 standard for electronic equipment used in power installations
• Voltage-tested up to 2.5kV for protection against unexpected electrical surges

Datasheet 2966595
