Burkert Solenoid Valve 134071, 2 port(s) , NC, 24 V dc, 1/8in, Клапан

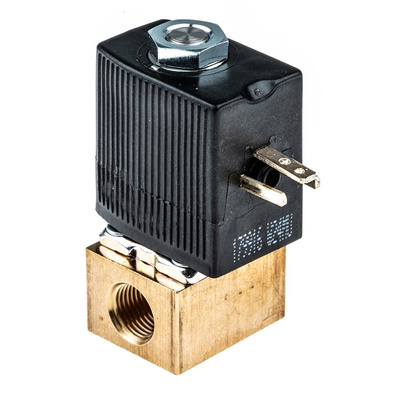

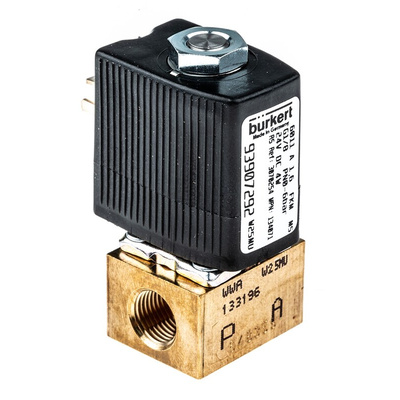

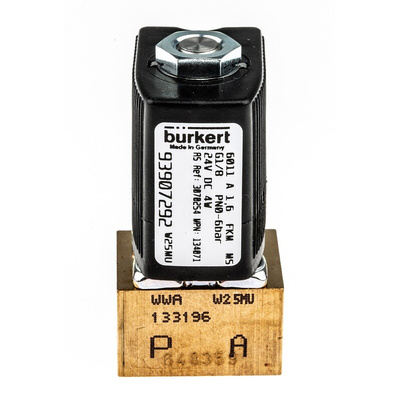

Burkert Solenoid Valve

The Burkert 2-port 1/8in G female solenoid valve is a screwed coil system. It has high-quality seal material FPM as standard. The stopper and plunger guide tube are welded together to enhance pressure resistance and leak tightness. Its maximum opening and closing time ranging between 15 milliseconds and 20 milliseconds. This valve is suitable to use with water, neutral fluids air natural, gases, oil and fats (without additives).

Features and Benefits

Supply voltage is 24VDC
Flow factor (Kv) is 0.06m³/h
Direct-acting and compact valve with diameter of DN2.4
Brass body with a polyamide coil
Coil can be changed easily with valve in place
Coil can be locked in four by 90° positions or move freely in between, as required
Simple and quick flange or manifold installation
Quick coupling (push-in fitting) for plug-in hose connections
Maximum working pressure is 6bar
Power consumption is 4W
Operating temperature ranging between -10°C and 55°C

Certifications

IP65 rated

Datasheet - 134071
