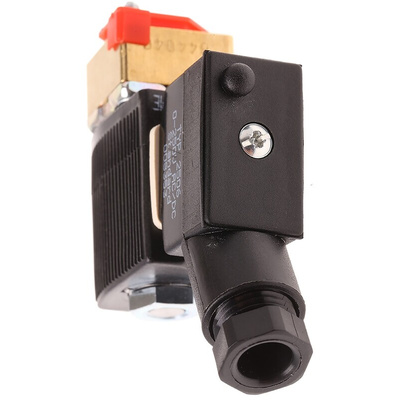

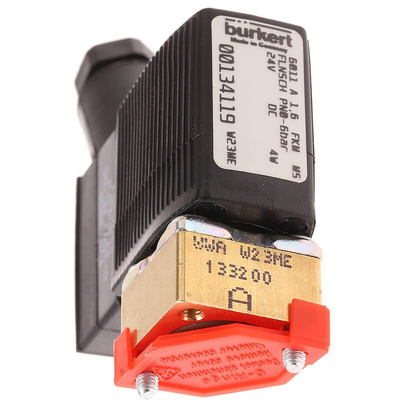

Burkert Solenoid Valve 134119, 2 port(s) , NC, 24 V dc, Клапан

6011 Series Two-way, Miniature Normally Closed Solenoid Valves - Sub Base Connection (Manifold)

Compact Design
Coil changed easily with valve in place
FPM seal
Suitable for the following media: compressed air, water, hydraulic oil
Operating temperature -10 to +100°C max.
Protection to IP65 with cable plug DIN43650C
Fits on the following manifolds: stock nos 244-389, 244-395, 244-418 and 244-424

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

ELECTROVANNE / EMBASE SERIE 6011
