CT6/LSR, Compact Instruments Tachometer Best Accuracy ±0.05 % - , With RS Cal Optical LED 99999rpm, Тахометр

Multi-Range CT6 & CT6LSR

CT6

This instrument is for general purpose non-contact measurement of RPM, cycle time, total count, duration of total count.

Accepts all Compact Instrument tachometer accessories
Uses conventional incandesent light source

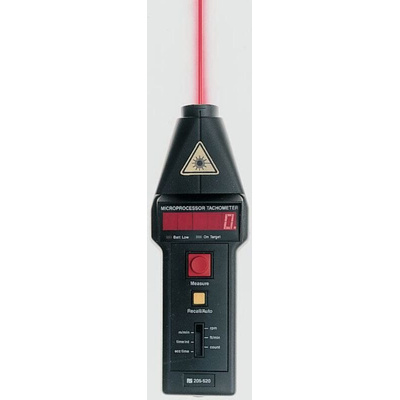

CT6LSR

This instrument has all of the measurement features of the CT6 but is ideal for use in difficult target applications.

Extended operating range (2m)
Will operate a ±80° to axis of reflective target
High intensity target-beam (Class IIa laser, 670mm, 1mW)
Accepts all Compact Instrument Accessories
Complete with LSAB-2 optical to contact adaptor (RS 622-587)

Warning

Read the instruction leaflet carefully prior to use. The safety requirements, for Class II lasers, are detailed in BS EN 60 825:1992 which replaces BS17192:1989.

Compact Tachometer

The Compact instrument high-speed optical laser hand tachometer has an overall range of 3rpm - 99999rpm. Best Accuracy is ±0.05%. This is general-purpose tachometer is used for non-contact measurement of RPM, cycle time, total count, duration of the total count. Operating an optical range of 50mm: 2000mm. Laser light gives a greater operating distance (2 metres) from the reflective target used in the application. The Laser is classified as CLASS II safe for portable use. This instrument has all of the measurement features of the CT6 but is ideal for use in difficult target applications.

Warning: Read the instruction leaflet carefully before use. The safety requirements, for Class II lasers, are detailed in BS EN 60 825:1992 which replaces BS17192:1989.

Features and Benefits

Accepts all compact instrument Accessories
Bright red LED Display
Complete with LSAB-2 optical to contact adaptor (RS 622-587)
Contact Adaptor fitment
Extended operating range (2m)
High intensity target-beam (Class II laser, 670mm, 1mW)
Last reading hold & re-call
On target & low battery indicators.
Remote sensor input
Will operate a ±80° to axis of reflective target

Applications

Air motors
Dental drilling equipment
Gyros
Similar low torque high-speed devices
Very high-speed small shaft machines
