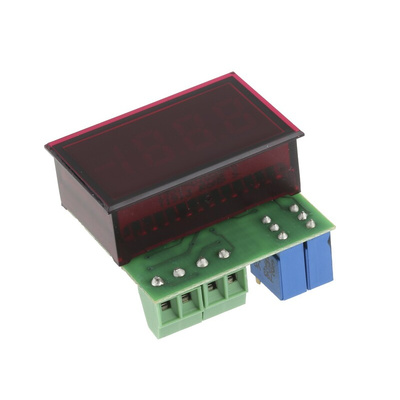

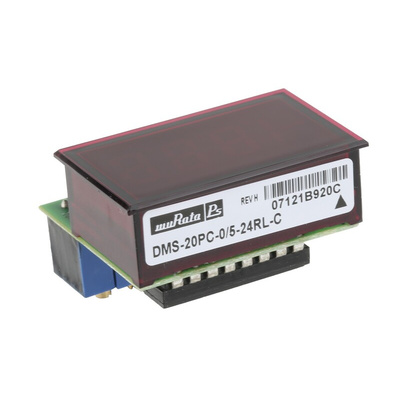

Murata Power Solutions Murata DMS-20PC-0/5-24RL-C , LED Digital Panel Multi-Function Meter for Voltage, 21.29mm x 33.93mm, Многофункциональный измеритель

Murata Power Solutions Process Control Monitor

The Murata power solutions process control monitor is the world's smallest, full-featured display unit. The DIP switch and potentiometers accommodate hundreds of input voltage/output-reading combinations. This practically eliminates the need for more costly, long lead-time, factory specials" in applications that use several different-range meters. A supplied bezel assembly features metal fasteners and a rubber gasket that simplifies panel mounting and provides excellent resistance to environmental dust and moisture. All these outstanding features combine to make the device perfect meter for prototype and OEM, 0-5V input, process control monitoring.

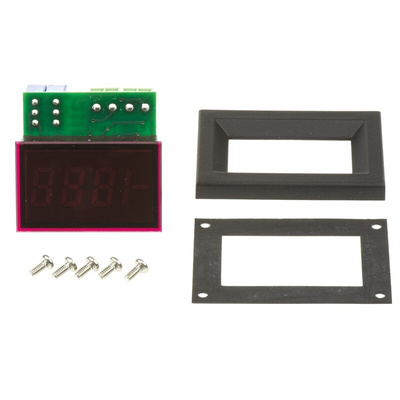

Included:
Bezel

Features and Benefits

Accepts 0-5V and 0-10V inputs
Large, easy-to-read, 0.37in/9.4mm LED display
Choice of 5 LED power/colour options
High input impedance, 100kohm
5V to 40V model draws 9mA typ.
Miniature size: 1.38in x 1.25in x 0.95in
High-quality, 20-turn, span (gain) and zero (offset) adjustments
DIP-switch selectable range and decimal points
Vibration-resistant package
reliable screw-terminal input connections
Hundreds of different input/readout combinations
Cut-out height of 21.29mm, width of 33.93mm and depth of 24mm
Screw terminal input connections
Operating temperature ranges between 0°C and 60°C

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
