Murata Power Solutions Murata DMS-20LCD-4/20S-C , LCD Digital Panel Multi-Function Meter, 21.29mm x 33.93mm, Многофункциональный измеритель

Murata Power Solutions Multi-Function Meter

The Murata power solutions self-powered, process indicator has a super-low loop drop that keeps its nominal loop resistance (burden) less than 100Ohms. All operating power is derived solely from the 4mA to 20mA loop current. This eliminates the need for a separate power source. The simple 2-wire hook-up allows the device to be connected anywhere in the loop.

Features and Benefits

Unipolar, bipolar and positive reading models
Sub miniature package with less than 0.90in behind-the-panel depth

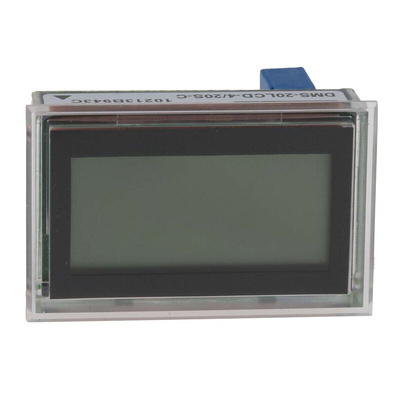

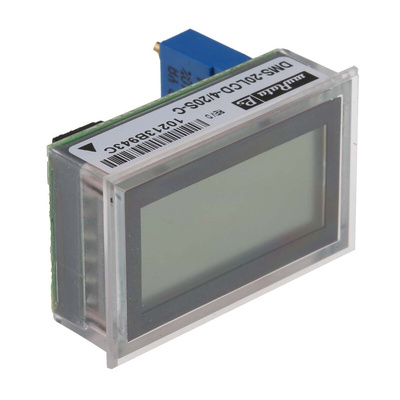

Large, 0.37in/9.4mm high, sunlight-viewable LCD display

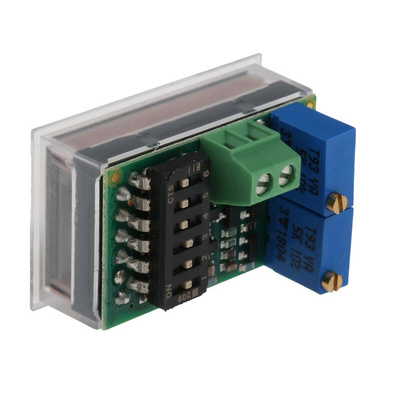

Non-interacting gain (span) and offset (zero) 20-turn potentiometers

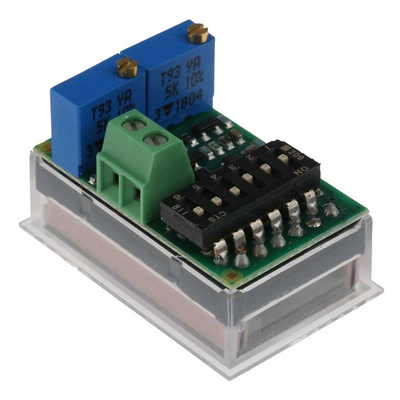

DIP-switch selectable range and decimal points
Hundreds of different input/readout combinations
Vibration-resistant package
reliable screw-terminal input connections
Cut-out height of 21.29mm, width of 33.93mm and depth of 21.29mm
Number of digits are 3.5
Digit height is 9.4 mm
Operating temperature ranges between 0°C and 60°C

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP65 rated
