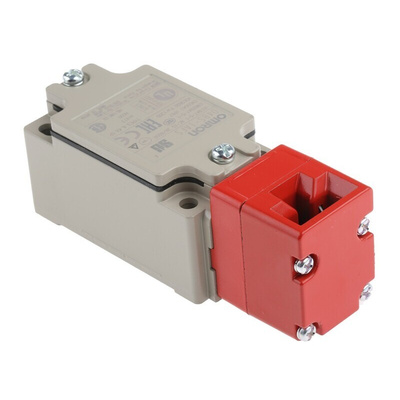

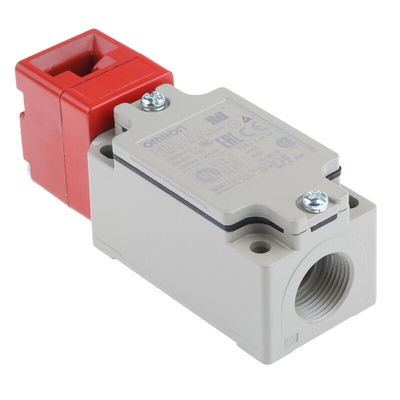

D4BS-1AFS, Omron D4BS Series Safety Interlock Switch, 2NC, IP67, Plastic Housing, 400V ac Max, 2A Max, Выключатель

D4BS — Safety position switch

Version with 1 or 3 cable entries
Metal case IP67
2 NC contacts or one NC and one NO
Standard format as per EN 50047

Standards

IEC 947-5-1, EN 60947-5-1,
EN 1088

Approvals

UL, CSA, BG, TÜV

Omron Safety Interlock Switch

The Omron D4BS series safety interlock switch has 2NC switch configuration. It is a labour saving and environmentally friendly safety door switch. It has a special operation key that activates a direct opening mechanism to open the contacts and shut off control circuits. This happens when the protective doors are opened on machine tools or other equipment. The housing material is plastic and it is available in a key lock style.

Features and Benefits

• Operation key positively forces the switch contacts upon withdrawal
• Operating temperature ranges between -40°C and + 80°C ensures operation in harsh conditions
• Positive action contacts

Certifications

• IP67 rated
• EN60947-5-1
• IEC947-5-1
• EN50041
• UL certified
• CSA certified
• BG certified
