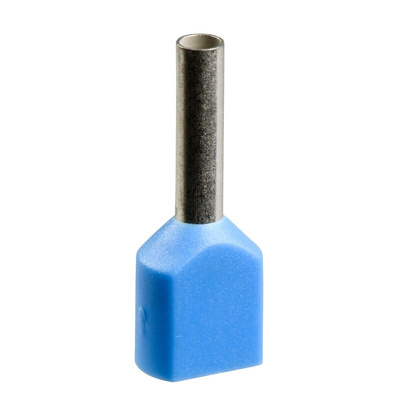

AZ5DE007, Schneider Electric Bootlace Ferrule, 8mm Pin Length, 2mm Pin Diameter, Blue

Moulded Cable Ends

Cable ends comprising a tinned copper tube with a moulded isolating collar at the end.
The copper tube envelops the strands of the flexible conductor and facilitates introduction into terminals.
These ends are available for conductors with cross-sections from 0.5 → 2.5 mm², in different colours.
These ends are packaged in small boxes of 100 pieces for the single version or 200 pieces for the double, for ease of use. This packaging ensures good gripping of the ends in thedish-shaped receptacle. Simple pressure on the sides enables the amount of ends required to be extracted.

Schneider Electric Bootlace Ferrule, Halogen-Free Bezel, 0.75mm² Maximum Wire Size - AZ5DE007

When the job calls for contact reliability, terminate a stranded cable with a bootlace ferrule like this one from Schneider Electric. Once crimped in place, the product's conductive brass tube effectively covers all the wires of your twin conductor cables. This gives you an electrically stable means of termination that's practical for screw and spring-clamp connections. On the other end, a non-conductive plastic bezel insulates against shock and provides something to hold onto for easy insertion and withdrawal. A versatile pick, this cable end accepts insulated leads with cross-sections up to 0.75mm² (20AWG).

Features & Benefits

• Comes in a box of 100, so you have plenty to see you through multiple jobs
• Sold in a dispenser pack, making it easy to grab a new ferrule as you work
• Plastic end is halogen-free and won't produce toxic smoke in case of fire
• Bezel size of Ø2.8 x 5mm is ideal for medium-sized wires with insulation

Applications

• Telecommunications
• Industrial automation
• Robotics systems

What's the meaning of this product's blue colour coding?

Being blue helps you recognise its maximum accepted size at a glance (0.75mm²/20AWG). This makes it easy to pick the right ferrule for the job.
