R141082161, Radiall, Plug Cable Mount BNC Connector, 50Ω, Crimp Termination, Straight Body, Разъем

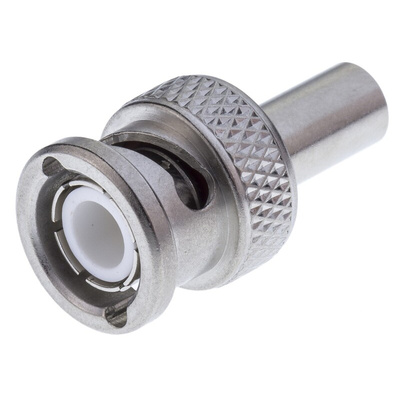

Radiall 50 Ohm BNC-COM RF Coaxial Plug, Crimp

50 ohm BNC-COM RF coaxial plug with a crimp type coaxial termination. This 50 ohm BNC-COM RF coaxial plug has a white polypropylene dielectric, a nickel plated brass body and a gold plated centre contact. The RF coaxial cable types that this BNC-COM RF coaxial crimp plug can be used with are the following: RG-58, RG-141, KX 15

Radiall BNC RF Coaxial Connectors

Brass -bodied connectors with PTFE insulators, and gold plated brass centre contacts. Certain connectors are available in both crimp and clamp braiding options and bulkhead sockets. A commercial range of BNC plugs and bulkhead sockets is available in bulk packs of 100. These have a different specification to the standard Radiall range. See the respective details in the technical specification table below.
