T0053312599, Weller Electric Soldering Iron, 24V, 80W, Паяльник

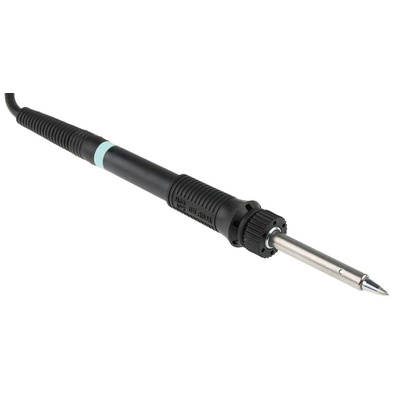

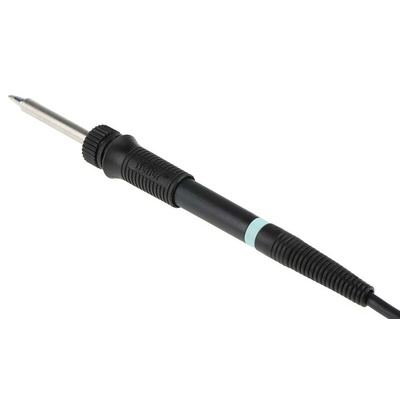

WSP 80 80 W Micro Soldering Pencil

The Weller micro-soldering pencil WSP 80 features precise and quick heating to the required solder temperature thanks to an exclusive, patented system that transmits the temperature directly to the entire base diameter ofthe tip. This process reduces the cost of tips and the cost of using the iron.
Its ergonomic form and performance guarantee precision, industrial-level brazing.
Temperature can be adjusted between +50 °C and +450 °C. The tips are quickly and easily interchangeable.
Available separately and in a kit.

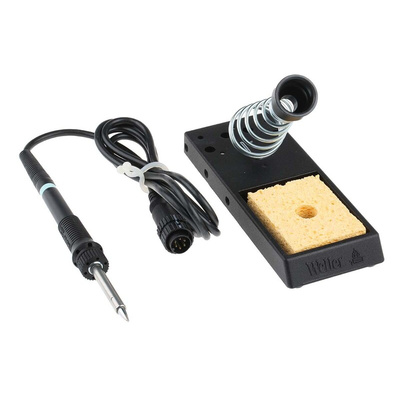

Weller WSP 80 Set, 80 W Soldering Iron with a Safety Rest.

From Weller this is the WSP 80 Set Soldering Iron / soldering pencil, an 80W, 24V, universal soldering iron complete with a soldering iron safety rest. It is designed for medium-sized electronic components which are through-hole or surface mounted, ideal for electronics which require high energy. The soldering iron has Silver-Line heating technology ensuring a fast heat-up within 10 seconds, with a temperature range of 50°C to 450°C. Soldering tips are quickly and easily changed as the iron / pencil is fitted with a knurled nut plus the iron is WT compatible. The safety rest ensures that the iron is held safely when not in use avoiding any damage to the soldering iron and tips.

Features and Benefits.

• WSP 80 Set (with soldering iron stand) Soldering iron.


• Power of 80 W.


• Voltage 24 V.


• Universal soldering iron / soldering pencil.


• Silver-Line heating technology.


• Heats up quickly (within 10 seconds).


• Easy change of solder tips via the knurled nut.


• Excellent for use when high energy soldering required (medium components).


• Temperature range 50°C to 450°C.


• WT (solder stations) and WR (re-work stations) Compatible.


• LT soldering tip range (type HPB).


• Soldering Iron rest.

What's included?

• 1 x WSP 80 soldering iron.

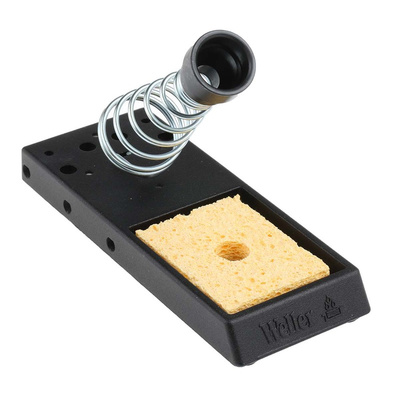

• 1 x Soldering iron stand / safety rest

Soldering Irons Stands Available.

• WSP80, Stock number 5115185.


• WDH 10, stock number 5052208.


• WDH 10T, stock number 185687.

What tips are compatible with the WSP 80 soldering iron?

• The Weller WSP 80 is compatible with the Weller LT series of soldering tips. There is a wide selection within the LT range Straight Conical, Bevel, Chisel, Bent Chisel, Straight Knife, Straight Hoof, for example, 2922053 or 3610723.

We have 40 plus Weller LT soldering tips available.

What power units are compatible with the WSP 80?

Weller recommends the WT range of soldering stations or the WR reworking stations. For example:

Power Units Available (Stand-alone Power Stations and Power Station Sets).

• WT 1012 set, 80 W, 230 V, stock number 1227917.


• WTHA 1 set, 230 V, stock number 1227920.


• WT 1010 set, 90 W, 230 V, stock number 1227916


• WT 1 station, 90 W, 230 V, stock number 1227912.


• WT 1013 set, 230 V, stock number 1227918.


• WT 1010H set, 150W, 230 V, stock number 1227919.


• WT l H station, 150 W, 260 V, stock number 1227913.


• WT 1012 station, 95 W, 230 V, stock number 1924525.


• WT 2020 M station, 150 W, 230 V, stock number 1924526.


• WT 2020 M station, 150 W, 230 V, stock number 1763373.


• WT 2010 M station, 150 W, 260 V, stock number 1763372.


• WT 2M station, 150 W, 230 V, stock number 1763371.


• WTHA 1 station, 900 W, 230 V, stock number 1924527.

Accessories for the WSP 80 Soldering Iron.

• Tip retainer, stock number 6119841.

Station Irons - Weller

LT Series Tips For WSP80 Iron

Weller WT Selection Guide

57 Page ESD Control Selection Guide

Datasheet T0053312599N
