6326 120 06, Jaeger 12 Way Cable Mount MIL Spec Circular Connector Plug, Socket Contacts, MIL-DTL-5015, Разъем

"Industrial" series - Plugs

Model with 3 to 7 contacts of 1.6 mm diameter in a size 1 housing, and 12 contacts in a size 2 housing in nickel-plated aluminium alloy.
Quick click locking system (1//6 of a turn).
The contacts can be taken apart and may also be crimped (pliers M 22520-1//01 and M 22520-1//02) or soldered to the connecting wires.
Tool ref. 5774 540 06 (stock no. 285-5161) is indispensable for fitting and removal of contacts.

The plugs in the ''industrial'' series are available in male or female versions.

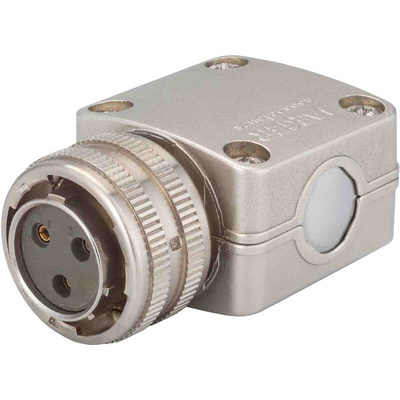

Fitted with a square, rear connector, made up of two half-shells. This connector features three positions for identical cable connections, which are oriented differently and which may be used simultaneously. These openings may accomodate one or more cable grips (available separately). Unused openings must remain plugged by the original blanking plates.

Warning

All contacts must be installed in insulation (neoprene).

Jaeger Industrial - Metal

Based upon the Standard and ’Rapid’ series of connector, the Industrial series offers superior durability in applications where connectors will be connected and disconnected many times. Bayonet locking, supplied with 3, 7, or 12 crimp contacts. Crimp tooling and an insert/extraction tool is also available.

Industrial Series Sockets Plugs and Cable Connecting Plugs Data Sheet
