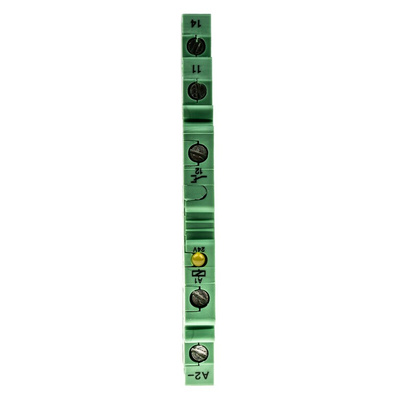

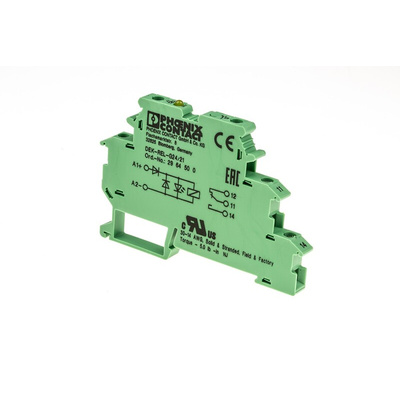

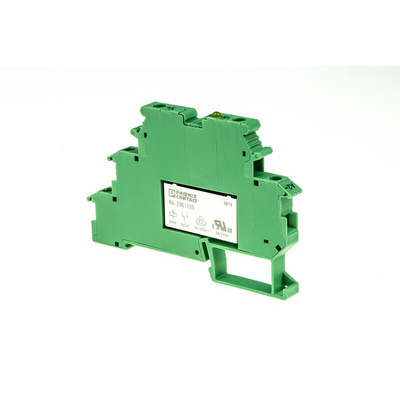

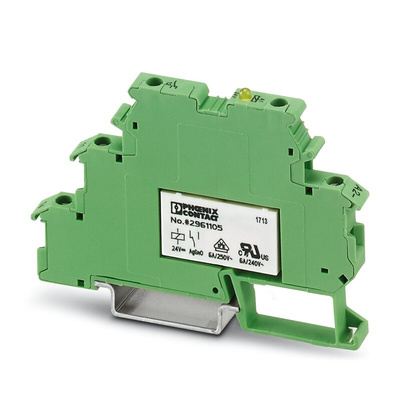

2964500, Phoenix Contact DEK-REL Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, Модуль

Phoenix Contact Interface Relay, 8ms Turn-On Time, Screw Terminal Type - DEK-REL-G24/21 - 2964500

When you need to communicate switching signals between components with significant voltage differences, choose this interface relay from Phoenix Contact. It provides galvanic isolation that prevents unwanted currents from flowing between different parts of your system. This helps avoid interference and increases safety by protecting against electric shocks.
You can mount this relay on a DIN rail, so it's quick and easy to install into your industrial automation setup. Screw termination achieves a solid connection and makes maintenance straightforward. With its speedy turn-on time of 8ms, you can count on this unit when you need to get things up and running fast. The housing has an IP67 rating, indicating that the relay is well protected against dust, high-pressure water jets and immersion. Although there's a lot of functionality packed into this relay, it measures up at just 6.2mm wide, so it fits easily into busy setups. You can use it in manufacturing plants, treatment facilities and mechanical workshops.

Features & Benefits

• LED switching indicator for at-a-glance status checks
• 250V switching voltage suits high-power applications
• Safe to use in a temperature range between -20°C and +50°C

Note

Use of EB 80-DIK... bridges in the DEK terminal blocks: Absorption of humidity from the ambient air as well as an unfavourable tolerance between a larger number of DEK terminal blocks and the EB 80-DIK... bridge may cause (minor) expansion of the DEK housing. When the EB 80-DIK... bridges are used, therefore, it is recommended that these be disconnected after about 10 to 12 DEK terminal blocks and a wire bridge to the next DEK terminal block be inserted in their place.

Datasheet 2964500

Datasheet 2964500

Line Drawing - 2964500
